Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. Additionally, use short traces, and avoid crossing digital and analog signals. Refer to the TI application note 'PCB Layout Guidelines for the ADS823E' for more details.
The gain settings for the ADS823E/1K depend on the specific application and signal amplitude. The device has a programmable gain amplifier (PGA) that can be set to 1, 2, 4, or 8. Use the TI-provided gain calculation tool or consult the datasheet to determine the optimal gain setting for your specific use case.
The maximum input voltage range for the ADS823E/1K is ±5V. To protect the device from overvoltage, use external voltage limiting resistors or clamping diodes, and ensure that the input signal is within the specified range. Consult the datasheet for more information on input voltage limits and protection methods.
To optimize power consumption, use the device's power-down mode, reduce the clock frequency, and adjust the PGA gain settings. Additionally, consider using the device's internal voltage reference and reducing the analog input bandwidth. Consult the datasheet and TI application notes for more power-saving techniques.
The recommended clock frequency for the ADS823E/1K is between 1 MHz and 4 MHz. A higher clock frequency can improve the device's throughput and bandwidth, but may also increase power consumption and noise. Consult the datasheet and TI application notes for more information on clock frequency selection and its impact on performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS823E/1K Overview

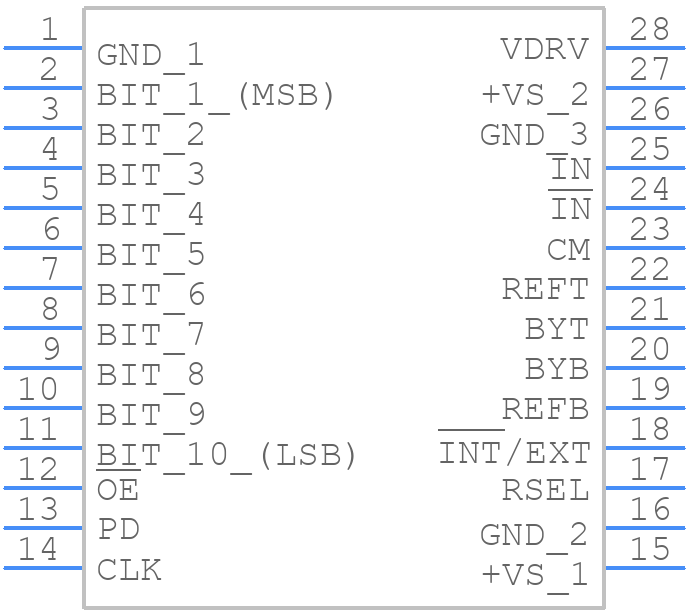

Use the download button to access the ADS823E/1K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS82,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
