ADS825E - Texas Instruments

Description: Texas Instruments ADS825E, 10 bit Parallel ADC, Differential Input, 28-Pin SSOP

Download ADS825E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

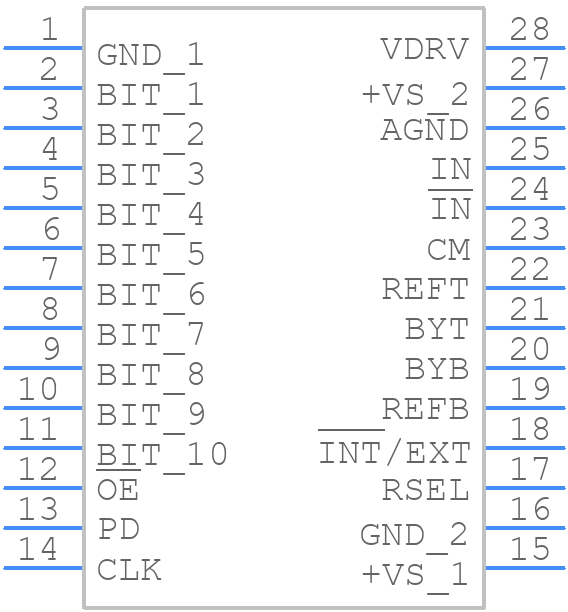

Symbol
ADS825E - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS825E - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-28
click to zoom
3D Models
ADS825E - Texas Instruments - 3D model - Small Outline Packages - SOIC-28
click to zoom

ADS825E Details

  • Manufacturer Part Number:

    ADS825E

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Pin Count:

    28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    1

  • Additional Feature:

    Peak-to-peak input voltage range(V) : 1,2

  • Analog Input Voltage-Max:

    2 V

  • Analog Input Voltage-Min:

    -2 V

  • Converter Type:

    ADC, PIPELINED

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    40 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

ADS825E Frequently Asked Questions (FAQs)

  • The ADS825E requires careful layout and routing to achieve optimal performance. TI recommends using a 4-layer PCB with a solid ground plane, and keeping the analog and digital signals separate. Additionally, the input and output traces should be kept short and away from noise sources.
  • The ADS825E's analog input impedance can be optimized by selecting the correct input resistor (RIN) and capacitor (CIN) values. TI provides a calculator tool to help determine the optimal values based on the specific application's requirements.
  • The recommended power-up sequence for the ADS825E is to first apply the analog supply voltage (AVDD), followed by the digital supply voltage (DVDD), and then the clock signal. This ensures that the ADC is properly initialized and ready for operation.
  • The ADS825E's digital output data is in two's complement format. The user needs to take care when handling the output data, especially when converting it to a signed or unsigned integer format, to avoid errors and ensure correct interpretation of the data.
  • The ADS825E can operate with clock frequencies up to 20 MHz. However, the maximum clock frequency may be limited by the specific application's requirements and the system's noise tolerance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADS825E Overview

Use the download button to access the ADS825E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS82, or try a keyword search, such as Analog to Digital Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
