ADS828E - Texas Instruments

Description: 10-Bit, 75-MSPS Analog-to-Digital Converter (ADC)

Download ADS828E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

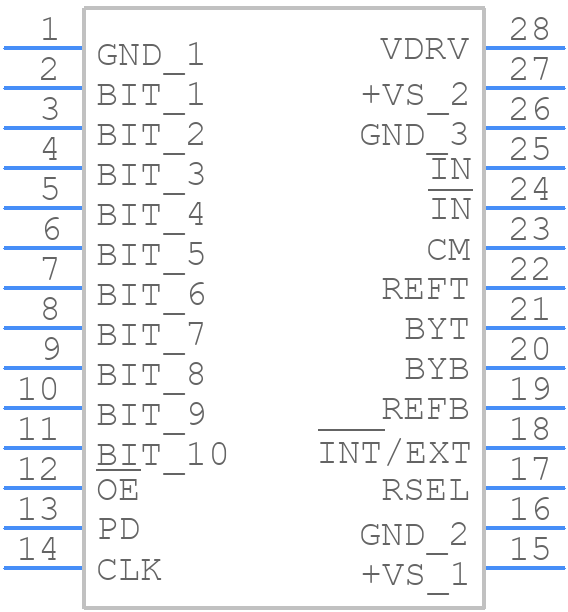

ADS828E - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS828E - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DB (R-PDSO-G28)
click to zoom
3D Models
ADS828E - Texas Instruments - 3D model - Small Outline Packages - DB (R-PDSO-G28)
click to zoom

ADS828E Details

  • Manufacturer Part Number:

    ADS828E

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    SSOP-28

  • Pin Count:

    28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    1

  • Additional Feature:

    Peak-to-peak input voltage range(V) : 1,2

  • Analog Input Voltage-Max:

    2 V

  • Analog Input Voltage-Min:

    -2 V

  • Conversion Time-Max:

    100 µs

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    10.2 mm

  • Linearity Error-Max (EL):

    0.293%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    75 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

ADS828E Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in the ADS828E evaluation module user's guide (SLAU445). It's essential to follow this guide to ensure optimal performance and minimize noise coupling.
  • TI provides an ADC performance calculator tool (ADC-PerfCalc) that helps optimize the ADC's performance based on the specific application requirements, such as signal frequency, amplitude, and desired SNR. Additionally, the ADS828E datasheet provides guidelines for optimizing performance in different modes.
  • The maximum clock frequency for the ADS828E is 20 MHz, but it's recommended to use a clock frequency between 1 MHz and 10 MHz for optimal performance. Higher clock frequencies may result in reduced SNR and increased power consumption.
  • The ADS828E outputs 16-bit data in a serial format. The user needs to implement a digital interface, such as SPI or I2C, to read the data from the ADC. TI provides example code and interface guidelines in the ADS828E datasheet and evaluation module user's guide.
  • The power consumption of the ADS828E varies depending on the operating mode and clock frequency. The datasheet provides power consumption estimates for different modes. To reduce power consumption, use the lowest possible clock frequency, disable the internal reference, and use the power-down mode when not converting.
