ADS830E/2K5 - Texas Instruments

Description: 1-Channel Single ADC Pipelined 60Msps 8-bit Parallel 20-Pin SSOP T/R

Download ADS830E/2K5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

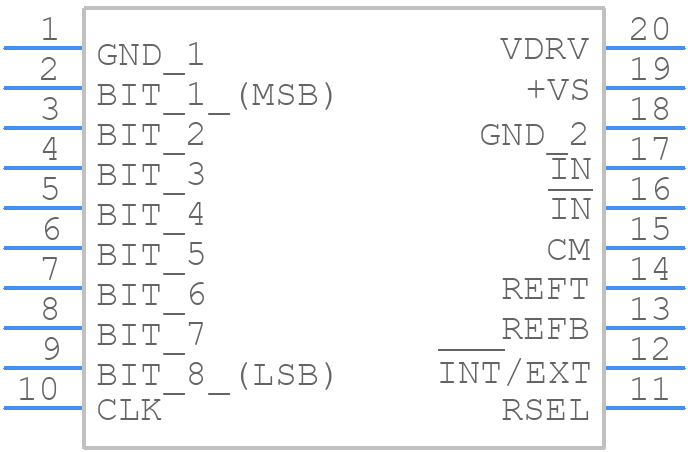

ADS830E/2K5 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS830E/2K5 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DBQ (R-PDSO-G20)
click to zoom
3D Models
ADS830E/2K5 - Texas Instruments - 3D model - Small Outline Packages - DBQ (R-PDSO-G20)
click to zoom

ADS830E/2K5 Details

  • Manufacturer Part Number:

    ADS830E/2K5

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Pin Count:

    20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Peak-to-peak input voltage range(V) : 1,2

  • Analog Input Voltage-Max:

    2 V

  • Analog Input Voltage-Min:

    -2 V

  • Conversion Time-Max:

    100 µs

  • Converter Type:

    ADC, PIPELINED

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Linearity Error-Max (EL):

    0.58593%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY

  • Output Format:

    PARALLEL, 8 BITS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    60 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Supply Current-Max:

    45 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

ADS830E/2K5 Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The input and output traces should be as short as possible and shielded from digital signals. Additionally, decoupling capacitors should be placed close to the power pins.
  • The ADS830E/2K5 has an internal calibration circuit that can be used to calibrate the device. The calibration process involves applying a known input voltage and adjusting the internal calibration registers to achieve the desired accuracy. The calibration process should be performed at the operating temperature range of the device.
  • The maximum input voltage range for the ADS830E/2K5 is ±2.5V. Exceeding this range can affect the accuracy of the device. The device has an internal voltage limiter that prevents damage from overvoltage, but it's still important to ensure that the input voltage stays within the recommended range.
  • The ADS830E/2K5 has a high common-mode rejection ratio (CMRR) of 80 dB, which means it can handle common-mode voltages up to ±2.5V. However, the system design should ensure that the common-mode voltage is within the recommended range to maintain accuracy and prevent damage to the device.
  • The power consumption of the ADS830E/2K5 is typically 15 mW at 2.5V supply voltage. This is relatively low power consumption, but it should still be considered in the system power budget, especially in battery-powered systems.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADS830E/2K5 Overview

Use the download button to access the ADS830E/2K5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS83, or try a keyword search, such as Analog to Digital Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
