ADS8317IBDRBT - Texas Instruments

Description: 16-Bit, Pseudo Bipolar, Fully Diff Input, 250kSPS Serial Out, 2.7V to 5.5V Micro Power Sampling ADC

Download ADS8317IBDRBT Model
Schematic

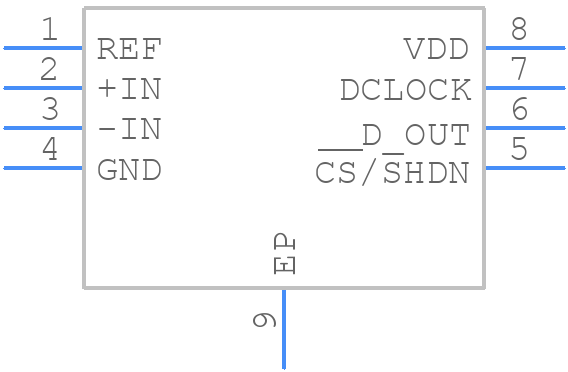

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADS8317IBDRBT - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRB (S-PVSON-N8)
click to zoom
3D Models
ADS8317IBDRBT - Texas Instruments  - 3D model - Small Outline No-lead - DRB (S-PVSON-N8)
click to zoom

ADS8317IBDRBT Details

  • Manufacturer Part Number:

    ADS8317IBDRBT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Package Description:

    HVSON-8

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    2.5 V

  • Analog Input Voltage-Min:

    -1.25 V

  • Conversion Time-Max:

    666.7 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0023%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.25 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADS8317IBDRBT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a layout guide and PCB design checklist in the ADS8317IBDRBT datasheet and application notes. It's essential to follow these guidelines to minimize noise, ensure signal integrity, and achieve optimal performance. Key considerations include keeping analog and digital signals separate, using a solid ground plane, and minimizing trace lengths and vias.
  • The ADS8317IBDRBT has an internal calibration circuit that can be used to calibrate the device. The calibration process involves applying a known input voltage and then reading the output code. The device can then be calibrated using the internal calibration circuit or through external calibration using an external voltage reference. Texas Instruments provides calibration procedures and equations in the datasheet and application notes.
  • The maximum sampling rate of the ADS8317IBDRBT is 250 kSPS (kilo-samples per second). However, the actual sampling rate may be limited by the system's clock frequency, the conversion time, and the settling time of the analog input signal. It's essential to consult the datasheet and application notes to determine the optimal sampling rate for a specific application.
  • The ADS8317IBDRBT has built-in error detection and correction mechanisms, such as overflow and underflow flags. Engineers can use these flags to detect and handle errors and exceptions in their application code. Additionally, Texas Instruments provides guidance on error handling and exception handling in the datasheet and application notes.
  • The power consumption of the ADS8317IBDRBT varies depending on the operating mode, sampling rate, and supply voltage. The typical power consumption is around 15 mW at 250 kSPS. To minimize power consumption, engineers can use the device's power-down mode, reduce the sampling rate, or use a lower supply voltage. Texas Instruments provides power consumption estimates and guidelines in the datasheet and application notes.
