Texas Instruments provides a layout and routing guide in the application note SLAA523, which recommends keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces.
The ADS8317IDRBT has an internal calibration circuit that can be used to calibrate the device. The calibration process involves applying a known input voltage and reading the output code. The device can then be calibrated using the internal calibration circuit or through external calibration using an external voltage reference.
The maximum sampling rate of the ADS8317IDRBT is 250 kSPS, but this can be limited by the system clock frequency, the conversion mode, and the interface mode. The datasheet provides more information on the sampling rate limitations.
Yes, the ADS8317IDRBT can be used in a multi-channel application by using multiple devices or by using a multiplexer to switch between multiple input channels. However, the device does not have a built-in multiplexer, so an external multiplexer would be required.
The power consumption of the ADS8317IDRBT depends on the operating mode, the sampling rate, and the supply voltage. The device has a typical power consumption of 15 mW at 250 kSPS. Power consumption can be minimized by reducing the sampling rate, using the power-down mode, and optimizing the system design.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
ADS8317IDRBT Overview

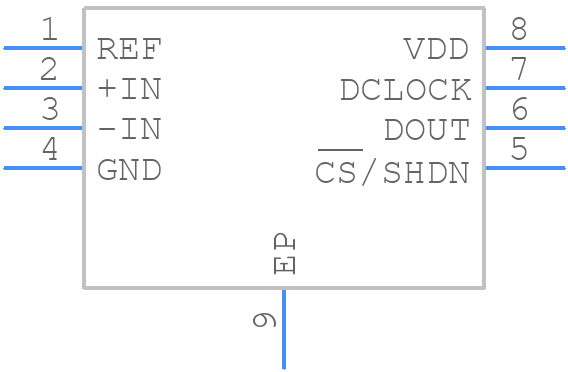

Use the download button to access the ADS8317IDRBT schematic symbol, PCB footprint, and 3D model.
