Part Image

ADS8319IBDGSR - Texas Instruments

Description: 16 Bit Analog to Digital Converter 1 Input 1 SAR 10-VSSOP

Download ADS8319IBDGSR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

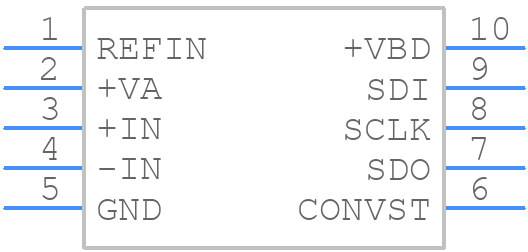

ADS8319IBDGSR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS8319IBDGSR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGS0010A
click to zoom
3D Models
ADS8319IBDGSR - Texas Instruments - 3D model - Small Outline Packages - DGS0010A
click to zoom

ADS8319IBDGSR Details

  • Manufacturer Part Number:

    ADS8319IBDGSR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Package Description:

    TSSOP-10

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.5 V

  • Conversion Time-Max:

    1.4 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-G10

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0023%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.5 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    4.5 mA

  • Supply Voltage-Min:

    2.375 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADS8319IBDGSR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. Additionally, use short traces, and avoid crossing digital and analog signals. Refer to the TI application note 'ADS8319 Layout and Routing Guidelines' for more information.
  • The gain and offset calibration can be done using the internal calibration registers. Refer to the datasheet section 'Calibration' for the step-by-step procedure. Additionally, TI provides a calibration software tool to simplify the process.
  • The maximum sampling rate of the ADS8319IBDGSR is 100 kSPS. However, the power consumption increases with the sampling rate. At 100 kSPS, the power consumption is approximately 15 mW. Refer to the datasheet section 'Electrical Characteristics' for more information.
  • The ADS8319IBDGSR outputs 16-bit digital data in twos complement format. The output data can be handled using a microcontroller or an FPGA. TI provides example code and interface guidelines in the datasheet and application notes.
  • TI recommends using a 10 μF ceramic capacitor and a 1 μF ceramic capacitor in parallel, placed close to the power pins. Additionally, use a ferrite bead or a pi-filter to filter the power supply noise.
