Texas Instruments provides a layout and routing guide in the ADS8319 datasheet, which recommends keeping the analog and digital grounds separate, using a solid ground plane, and minimizing trace lengths and loops. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
The ADS8319IBDRCR has an internal calibration circuit that can be used to calibrate the device. The calibration process involves applying a known input voltage and then reading the output code. The difference between the expected and actual output codes is used to calculate the gain and offset errors, which can then be used to correct the output codes. Texas Instruments provides a calibration procedure in the ADS8319 datasheet.
The maximum sampling rate of the ADS8319IBDRCR is 250 kSPS. However, the actual sampling rate may be limited by the system clock frequency, the conversion time, and the settling time of the analog input signal.
The ADS8319IBDRCR outputs 16-bit digital data in a binary two's complement format. The output data can be read using a serial interface, such as SPI or I2C. The host controller can then process the output data to extract the desired information, such as the analog input voltage or current.
The power consumption of the ADS8319IBDRCR depends on the operating mode, sampling rate, and supply voltage. The typical power consumption is around 15 mW at 250 kSPS. To minimize power consumption, the device can be operated in a low-power mode, and the sampling rate can be reduced. Additionally, the power consumption can be reduced by using a lower supply voltage and by turning off the device when not in use.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
ADS8319IBDRCR Overview

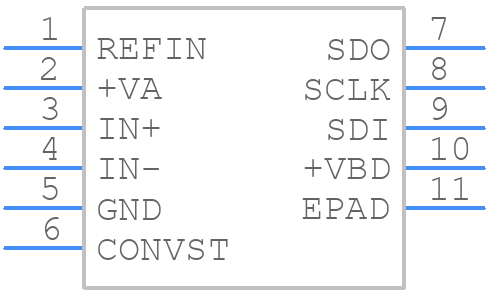

Use the download button to access the ADS8319IBDRCR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS83,
or try a keyword search, such as Analog to Digital Converters
