- Part Number ADS8319IDGSR
- Manufacturer Texas Instruments
- Pin Count 10
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - DGS0010A
- Released Date Jan 12, 2017
- Last Modified Date May 10, 2025 7:43 AM UTC
- Pinout / Pin List Click Here (Member Only)
ADS8319IDGSR Details
-
Manufacturer Part Number:
ADS8319IDGSR
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
MSOP
-
Package Description:
TSSOP-10
-
Pin Count:
10
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.30
-
Manufacturer:
Texas Instruments
ADS8319IDGSR Frequently Asked Questions (FAQs)
-
To minimize noise and ensure optimal performance, it is recommended to follow a star-grounding scheme, keep analog and digital grounds separate, and use a solid ground plane. Additionally, keep the analog input traces short and away from digital signals, and use a low-ESR capacitor for decoupling.
-
The gain and offset of the ADS8319IDGSR can be configured using external resistors and capacitors. Refer to the datasheet for the gain and offset equations, and use a calculator or simulation tool to determine the optimal values for your specific application.
-
The maximum input voltage of the ADS8319IDGSR is ±VCC + 0.3V. To protect the device from overvoltage conditions, use a voltage limiter or clamp circuit, and ensure that the input voltage does not exceed the maximum rating.
-
The ADS8319IDGSR is specified to operate from -40°C to 125°C. Ensure that the device is properly heat-sinked, and that the ambient temperature is within the specified range. Use thermal simulation tools to estimate the junction temperature and ensure that it does not exceed the maximum rating.
-
The recommended power-up sequence is to apply VCC first, followed by the analog input signal. During power-down, remove the analog input signal first, followed by VCC. This ensures that the device is properly biased and minimizes the risk of latch-up or damage.
Trust Checks
System Verified
ADS8319IDGSR Overview

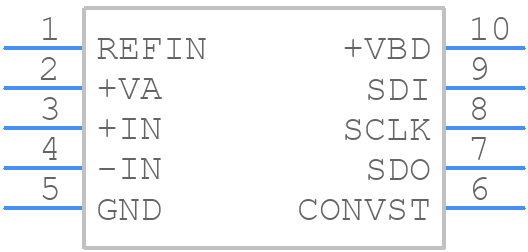

Use the download button to access the ADS8319IDGSR schematic symbol, PCB footprint, and 3D model.
