ADS8319IDRCT - Texas Instruments

Description: Precision 16-Bit SAR Analog-to-Digital Converter (ADC) With SPI Interface 2.25-V to 5.5-V 3.6 mW / 100 kSPS

Download ADS8319IDRCT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

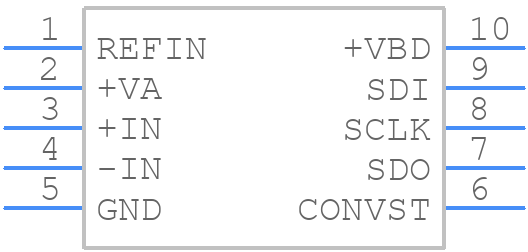

Symbol
ADS8319IDRCT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS8319IDRCT - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRC (S-PVSON-N10)
click to zoom
3D Models
ADS8319IDRCT - Texas Instruments - 3D model - Small Outline No-lead - DRC (S-PVSON-N10)
click to zoom

ADS8319IDRCT Details

  • Manufacturer Part Number:

    ADS8319IDRCT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Package Description:

    VSSOP-10

  • Pin Count:

    10

  • Country Of Origin:

    Mainland China, Malaysia, Philippines, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.5 V

  • Conversion Time-Max:

    1.4 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0038%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.5 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    4.5 mA

  • Supply Voltage-Min:

    2.375 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADS8319IDRCT Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The analog signals should be routed close to the ADC, and the digital signals should be routed away from the ADC. Additionally, decoupling capacitors should be placed close to the power pins.
  • The ADS8319IDRCT does not require calibration. It has an internal calibration circuit that is performed during power-up. However, it is recommended to perform a system-level calibration to account for any external component tolerances and PCB layout effects.
  • The maximum sampling rate of the ADS8319IDRCT is 100 kSPS. The power consumption increases with the sampling rate, but it is still relatively low at 1.5 mW at 100 kSPS. The power consumption can be reduced by reducing the sampling rate or using the power-down mode.
  • The ADS8319IDRCT outputs 16-bit digital data in a serial format. The data is output in a 16-bit word, with the most significant bit (MSB) first. The output data can be handled using a microcontroller or an FPGA, and can be processed using software or hardware.
  • The ADS8319IDRCT is specified to operate over a temperature range of -40°C to 85°C. The temperature affects the offset and gain of the ADC, which can affect the accuracy of the conversions. However, the ADS8319IDRCT has a built-in temperature sensor that can be used to compensate for temperature effects.
