ADS8322Y/2K - Texas Instruments

Description: 16 Bit Analog to Digital Converter 1 Input 1 SAR 32-TQFP (5x5)

Download ADS8322Y/2K Model

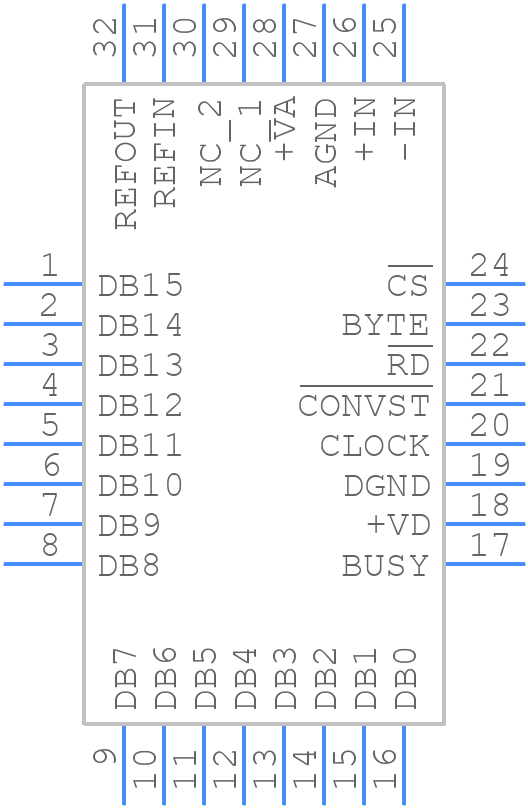

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADS8322Y/2K - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PBS (S-PQFP-G32)
click to zoom
3D Models
ADS8322Y/2K - Texas Instruments  - 3D model - Quad Flat Packages - PBS (S-PQFP-G32)
click to zoom

ADS8322Y/2K Details

  • Manufacturer Part Number:

    ADS8322Y/2K

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    QFP

  • Pin Count:

    32

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    1

  • Analog Input Voltage-Max:

    5.25 V

  • Conversion Time-Max:

    1.6 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PQFP-G32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Equivalence Code:

    TQFP32,.28SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.5 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    25 mA

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ADS8322Y/2K Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The analog input traces should be short and direct, and the digital output traces should be routed away from the analog inputs. Additionally, decoupling capacitors should be placed close to the device's power pins.
  • The ADS8322Y/2K has a built-in POR circuit that resets the device when the power supply voltage rises above 1.5V. To ensure proper operation, the power supply voltage should be ramped up slowly (less than 10ms) and the digital interface should be held in a reset state until the power supply is stable. The recommended power-up sequence is to apply the power supply voltage, then the analog input voltage, and finally the digital interface signals.
  • The maximum sampling rate of the ADS8322Y/2K is 100kSPS. However, the device's power consumption increases with the sampling rate. At 100kSPS, the device consumes around 15mW, while at lower sampling rates (e.g. 10kSPS), the power consumption is around 5mW. The sampling rate can be adjusted by changing the clock frequency or using the device's built-in programmable clock divider.
  • The ADS8322Y/2K has a built-in calibration circuit that can be used to trim the device's offset and gain errors. The recommended calibration procedure involves applying a known input voltage, reading the output code, and adjusting the calibration registers to achieve the desired accuracy. Texas Instruments provides a calibration procedure in the device's datasheet and application notes.
  • The ADS8322Y/2K's performance is affected by temperature, with the device's offset and gain errors varying with temperature. To compensate for temperature-related errors, the device can be calibrated at multiple temperatures, and the calibration data can be stored in external memory. Additionally, the device's temperature sensor can be used to monitor the temperature and adjust the calibration data accordingly.
