ADS8324E/250 - Texas Instruments

Description: 14-Bit 50 kSPS ADC Ser. Out, 1.8V Operation

Download ADS8324E/250 Model

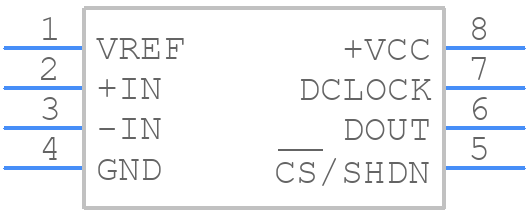

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADS8324E/250 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGK  (S-PDSO-G8)
click to zoom
3D Models
ADS8324E/250 - Texas Instruments  - 3D model - Small Outline Packages - DGK  (S-PDSO-G8)
click to zoom

ADS8324E/250 Details

  • Manufacturer Part Number:

    ADS8324E/250

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Package Description:

    TSSOP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    1

  • Analog Input Voltage-Max:

    1.8 V

  • Analog Input Voltage-Min:

    -0.9 V

  • Conversion Time-Max:

    8.89 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0183%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    1

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.05 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADS8324E/250 Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The analog input traces should be short and direct, and the digital output traces should be routed away from the analog inputs. Additionally, decoupling capacitors should be placed close to the device's power pins.
  • The POR and BOR circuits in the ADS8324E/250 ensure that the device resets properly during power-up and power-down sequences. To handle these resets, the system designer should ensure that the power supply ramps up and down slowly, and that the device's reset pin is properly connected to a reset circuit or a microcontroller's reset input.
  • The ADS8324E/250 can operate with a clock frequency between 1 MHz and 4 MHz. A clock frequency of 2 MHz is recommended for most applications. The clock source can be an external clock signal or the device's internal oscillator. If using the internal oscillator, a 10 kΩ resistor and a 10 nF capacitor are required to be connected between the OSCIN pin and the OSCOUT pin.
  • The ADS8324E/250 has an internal calibration circuit that can be used to calibrate the device. The calibration process involves applying a known input voltage to the device and then reading the output code. The device's offset and gain errors can then be calculated and corrected using the calibration data. Texas Instruments provides a calibration procedure in the device's datasheet and application notes.
  • The maximum input voltage range for the ADS8324E/250 is 0 V to 5 V. If the input voltage exceeds this range, the device may be damaged. To handle input voltages beyond this range, an input voltage limiter or a voltage divider circuit can be used to attenuate the input signal. Additionally, the device's input overvoltage protection circuit can be used to protect the device from input voltages up to 7 V.
