Texas Instruments provides a layout and routing guide in the application note 'ADS8326 Layout and Routing Guidelines' (SLAA544). It recommends keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces.
The ADS8326IBDRBR has an internal calibration circuit that can be used to calibrate the device. The calibration process involves applying a known input voltage and then reading the output code. The device can then be calibrated by adjusting the internal offset and gain registers. Texas Instruments provides a calibration procedure in the application note 'ADS8326 Calibration Procedure' (SLAA545).
The maximum sampling rate of the ADS8326IBDRBR is 250 kSPS (kilo-samples per second). However, the actual sampling rate may be limited by the system clock frequency, the conversion mode, and the interface mode. The datasheet provides more information on the sampling rate limitations.
Yes, the ADS8326IBDRBR can be used in a multi-channel application. The device has a serial interface that allows multiple devices to be connected to a single microcontroller. The devices can be addressed individually using the chip select (CS) pin. Texas Instruments provides an example of a multi-channel application in the application note 'ADS8326 Multi-Channel Application' (SLAA546).
The power consumption of the ADS8326IBDRBR depends on the operating mode, the sampling rate, and the supply voltage. The typical power consumption is around 15 mW at 250 kSPS. The power consumption can be reduced by using the power-down mode, reducing the sampling rate, or using a lower supply voltage. The datasheet provides more information on the power consumption and power-saving features.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
ADS8326IBDRBR Overview

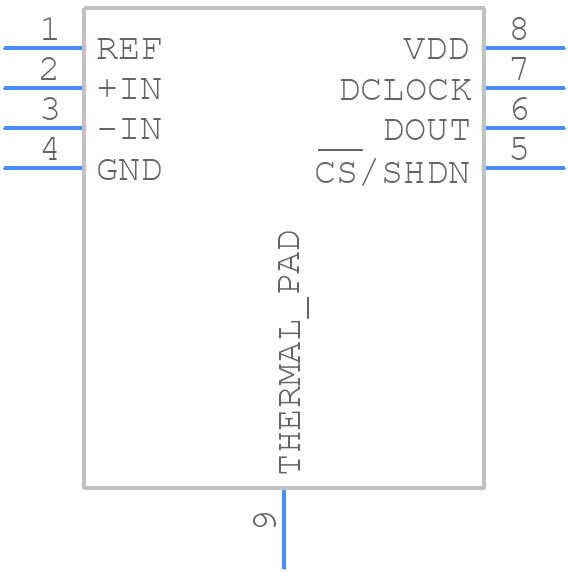

Use the download button to access the ADS8326IBDRBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS83,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
