The recommended layout and routing for the ADS8326IDGKR involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
To optimize the performance of the ADS8326IDGKR in noisy environments, use a low-pass filter at the input, use a shielded cable for the analog input, and consider using a common-mode filter or a differential amplifier to reject common-mode noise. Additionally, ensure that the analog and digital grounds are properly separated and decoupled.
The maximum clock frequency that can be used with the ADS8326IDGKR is 20 MHz. However, the actual clock frequency used may be limited by the specific application and the required conversion rate.
The output data from the ADS8326IDGKR is 16-bit, right-justified, and in two's complement format. The data can be handled by using a microcontroller or a digital signal processor to process the data and perform any necessary scaling or formatting.
The power consumption of the ADS8326IDGKR depends on the specific operating conditions, but typically it consumes around 15 mW at 2.7 V and 10 kHz sampling rate. The power consumption can be reduced by using the power-down mode or by reducing the clock frequency.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8326IDGKR Overview

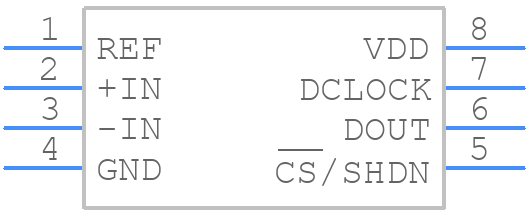

Use the download button to access the ADS8326IDGKR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS83,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
