Texas Instruments provides a layout guide in the datasheet (Section 10.1) and a separate application note (SLAA523) that details recommended layout and routing techniques to minimize noise and ensure accurate conversions.
The internal reference voltage can be configured using the REFSEL pin. For internal reference, connect REFSEL to VCC. For external reference, connect REFSEL to the external reference voltage. The internal reference provides a convenient, low-noise option, but may have limited accuracy and temperature drift. An external reference provides higher accuracy and flexibility, but requires additional components and board space.
The optimal clock frequency depends on the specific application requirements. The ADS8327IBRSAR can operate with clock frequencies between 1 MHz and 20 MHz. A higher clock frequency increases conversion speed but also increases power consumption. A lower clock frequency reduces power consumption but may limit conversion speed. A typical clock frequency is 10 MHz, which provides a good balance between conversion speed and power consumption.
The ADS8327IBRSAR provides a 16-bit or 12-bit digital output, depending on the configuration. The output data can be in straight binary or twos complement format. The choice of data format and word length depends on the specific application requirements and the microcontroller or digital signal processor being used. It's essential to ensure that the receiving device can handle the selected data format and word length.
The ADS8327IBRSAR is sensitive to temperature changes, which can affect accuracy and reliability. It's essential to ensure good thermal management by providing adequate heat sinking, using thermal vias, and keeping the device away from heat sources. The device has a specified operating temperature range of -40°C to 125°C, and it's recommended to operate within this range to ensure optimal performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8327IBRSAR Overview

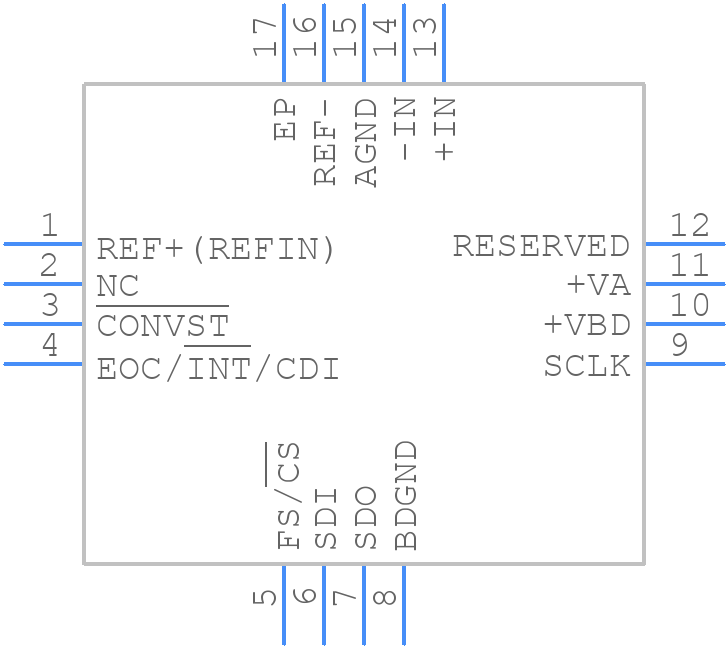

Use the download button to access the ADS8327IBRSAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS83,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
