ADS8327IBRSAT - Texas Instruments

Description: 2.7V-to-5.5V 16-Bit 500kSPS Serial Analog-to-Digital Converter (ADC)

Download ADS8327IBRSAT Model

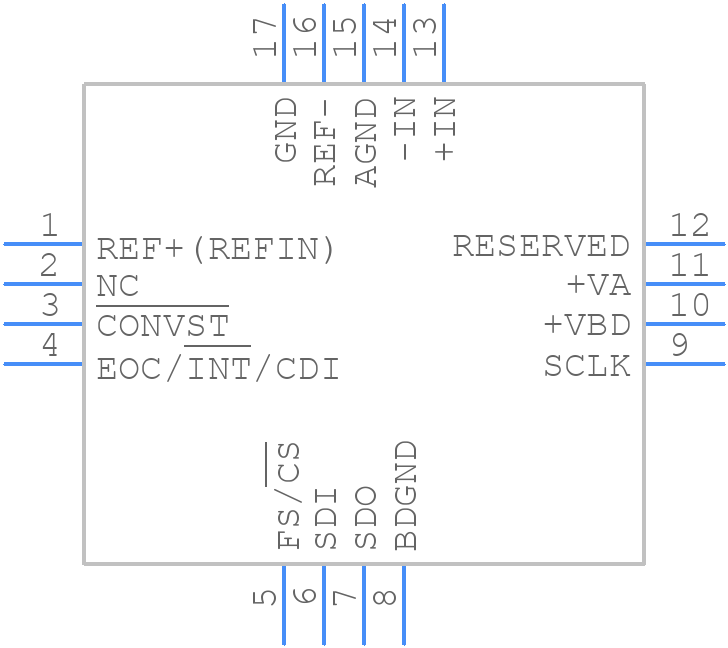

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADS8327IBRSAT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RSA (S-PVQFN-N16)(H=1mm)
click to zoom
3D Models
ADS8327IBRSAT - Texas Instruments  - 3D model - Quad Flat No-Lead - RSA (S-PVQFN-N16)(H=1mm)
click to zoom

ADS8327IBRSAT Details

  • Manufacturer Part Number:

    ADS8327IBRSAT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.5 V

  • Conversion Time-Max:

    1.636 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Linearity Error-Max (EL):

    0.0031%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.5 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    6.2 mA

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADS8327IBRSAT Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. Use short, direct traces for the analog inputs and outputs, and avoid running digital signals near the analog signals. Additionally, use a low-ESR capacitor for the AVDD pin and a 0.1uF capacitor for the REF pin.
  • For differential input mode, connect the positive input signal to the IN+ pin and the negative input signal to the IN- pin. For pseudo-differential input mode, connect the input signal to the IN+ pin and the reference voltage (e.g., GND or a fixed voltage) to the IN- pin. Ensure the input common-mode voltage is within the specified range (0.5V to 2.5V).
  • The optimal clock frequency for the ADS8327IBRSAT is between 1MHz and 4MHz. A higher clock frequency increases the conversion rate but also increases power consumption. For example, at 1MHz, the conversion rate is approximately 100kSPS, while at 4MHz, it's around 400kSPS. Choose a clock frequency that balances conversion rate and power consumption for your specific application.
  • The ADS8327IBRSAT has an internal 2.5V reference voltage, which can be used for most applications. However, if a more accurate or adjustable reference voltage is required, an external reference voltage can be connected to the REF pin. Ensure the external reference voltage is within the specified range (2.0V to 2.7V) and has a low noise and low drift characteristic.
  • When selecting an external analog input filter for the ADS8327IBRSAT, consider the filter's cutoff frequency, attenuation, and phase response. The filter should have a cutoff frequency above the Nyquist frequency (half the sampling rate) and provide sufficient attenuation of high-frequency noise. Additionally, ensure the filter's phase response does not affect the signal's phase and amplitude.
