Texas Instruments provides a layout guide in the datasheet, but it's recommended to follow a star-grounding approach, keep analog and digital grounds separate, and use a solid ground plane. Additionally, keep the analog input traces short and away from digital signals, and use a low-impedance source for the reference voltage.
The internal reference voltage is enabled by default, but it can be disabled by tying the REFEN pin to GND. Using an external reference can improve accuracy and reduce noise, but it requires careful consideration of the reference voltage's noise, temperature coefficient, and output impedance.
The optimal clock frequency depends on the application, but a frequency between 1-4 MHz is typical. Higher clock frequencies can increase power consumption and reduce conversion speed, while lower frequencies can reduce power consumption but increase conversion time.
A simple RC filter or a more complex active filter can be used to reject noise and aliasing. The filter design depends on the specific application, but a general rule of thumb is to use a filter with a cutoff frequency at least 10 times lower than the Nyquist frequency.
In a multi-channel or multiplexed configuration, the ADS8327IPWR requires careful consideration of channel-to-channel crosstalk, input impedance, and sampling rates. It's essential to use a suitable multiplexer and to ensure that the input signals are properly buffered and isolated.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8327IPWR Overview

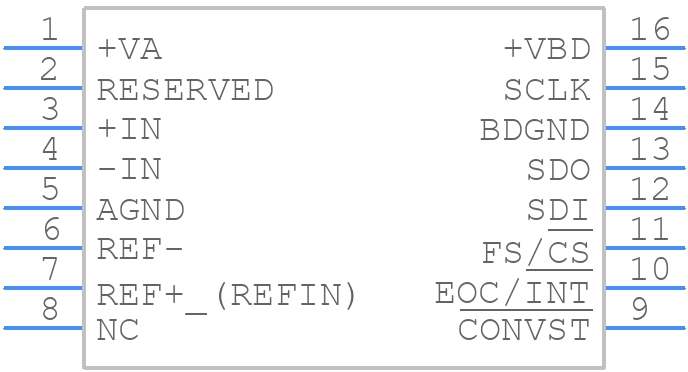

Use the download button to access the ADS8327IPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS83,
or try a keyword search, such as Analog to Digital Converters
