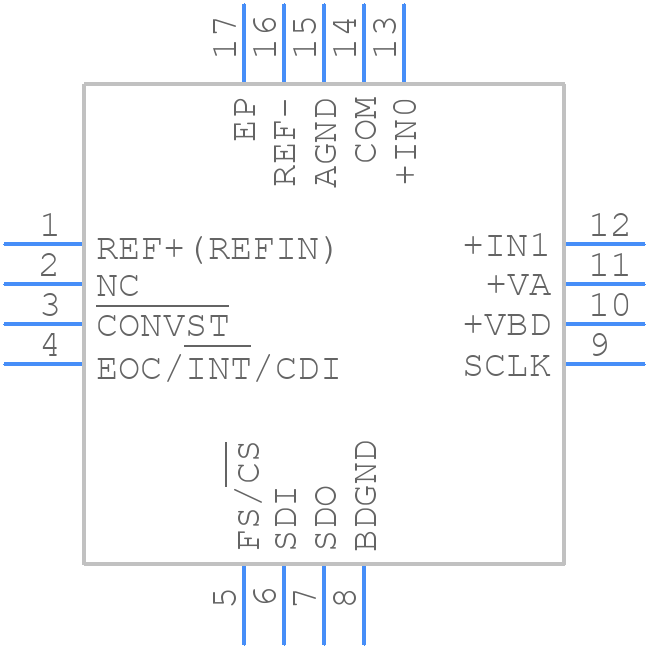

ADS8328IBRSAT - Texas Instruments

ADS8328IBRSAT Frequently Asked Questions (FAQs)

• What is the recommended layout and routing for the ADS8328IBRSAT to minimize noise and ensure accurate conversions?
  Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The analog input traces should be short and direct, and the digital output traces should be routed away from the analog inputs. Additionally, decoupling capacitors should be placed close to the device's power pins.
• How do I handle the device's power-on reset (POR) and brown-out reset (BOR) in my system design?
  The ADS8328IBRSAT has a built-in POR and BOR circuitry that resets the device during power-up or brown-out conditions. To handle this, ensure that your system design includes a power-on reset circuit that holds the device in reset until the power supply is stable. You can also use an external reset signal to reset the device if needed.
• What is the recommended clock frequency and clock source for the ADS8328IBRSAT?
  The ADS8328IBRSAT can operate with a clock frequency between 1 MHz and 20 MHz. Texas Instruments recommends using a clock frequency of 10 MHz or higher for optimal performance. The clock source can be an external clock signal or the internal oscillator. If using the internal oscillator, ensure that the clock frequency is set correctly using the device's clock control register.
• How do I calibrate the ADS8328IBRSAT to achieve optimal accuracy and linearity?
  The ADS8328IBRSAT has a built-in calibration circuit that can be used to calibrate the device. Texas Instruments recommends performing a full-scale calibration and a zero-scale calibration to achieve optimal accuracy and linearity. The calibration process involves writing specific values to the device's calibration registers and then reading back the converted values to verify the calibration.
• What is the recommended method for driving the ADS8328IBRSAT's analog input pins?
  The ADS8328IBRSAT's analog input pins should be driven with a low-impedance source, such as an op-amp or a low-impedance sensor. The input signal should be within the device's specified input range, and the input impedance should be less than 1 kΩ to ensure accurate conversions.
