ADS8328IPW - Texas Instruments

Description: 2.7V-to-5.5V 16-Bit 500kSPS Serial ADC With 2-to-1 Multiplexer

Download ADS8328IPW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

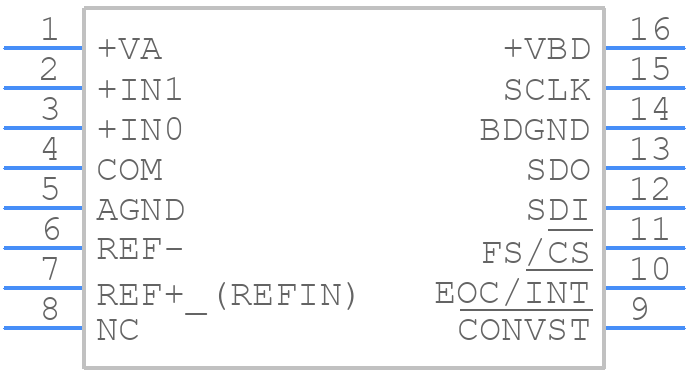

ADS8328IPW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS8328IPW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0016A
click to zoom
3D Models
ADS8328IPW - Texas Instruments - 3D model - Small Outline Packages - PW0016A
click to zoom

ADS8328IPW Details

  • Manufacturer Part Number:

    ADS8328IPW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.5 V

  • Conversion Time-Max:

    1.636 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0046%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    2

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.5 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    5 mA

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ADS8328IPW Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in the ADS8328IPW evaluation module user's guide (SLAU445). It's essential to follow this guide to ensure proper operation and minimize noise and interference.
  • The ADS8328IPW outputs 16-bit data in a serial format. You'll need to use a microcontroller or FPGA to receive and process the data. You can use a SPI or I2C interface to communicate with the device. Make sure to follow the timing diagrams and protocol specified in the datasheet.
  • The POR timing is not explicitly stated in the datasheet. According to Texas Instruments, the POR timing is typically around 10 ms, but it can vary depending on the specific application and power supply conditions. It's recommended to add an external POR circuit or use a microcontroller to ensure a clean power-on reset.
  • Yes, the ADS8328IPW can be used in a ratiometric configuration. This means that the reference voltage (VREF) is connected to the analog input voltage (VIN). This configuration can provide better accuracy and noise rejection. However, it's essential to ensure that the VREF and VIN are properly decoupled and filtered to avoid noise and oscillations.
  • The ADS8328IPW does not require calibration in the classical sense. However, you may need to perform a system-level calibration to account for gain and offset errors. This can be done by applying a known input voltage and measuring the output code. You can then use this data to calculate the gain and offset corrections.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADS8328IPW Overview

Use the download button to access the ADS8328IPW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS83, or try a keyword search, such as Analog to Digital Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
