ADS8329IRSAR - Texas Instruments

Description: 2.7V-to-5.5V 16-Bit 1MSPS Serial Analog-to-Digital Converter (ADC)

Download ADS8329IRSAR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

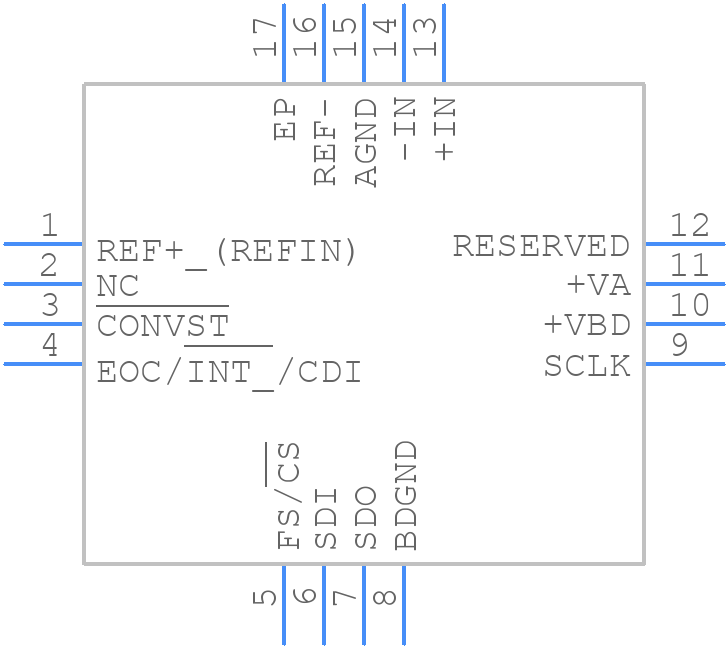

ADS8329IRSAR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS8329IRSAR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RSA (S-PVQFN-N16)(H=1mm)
click to zoom
3D Models
ADS8329IRSAR - Texas Instruments - 3D model - Quad Flat No-Lead - RSA (S-PVQFN-N16)(H=1mm)
click to zoom

ADS8329IRSAR Details

  • Manufacturer Part Number:

    ADS8329IRSAR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    HVQCCN-16

  • Pin Count:

    16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.5 V

  • Conversion Time-Max:

    0.786 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Linearity Error-Max (EL):

    0.0038%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    6.1 mA

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADS8329IRSAR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The analog input traces should be short and direct, and the digital output traces should be routed away from the analog inputs. Additionally, decoupling capacitors should be placed close to the device.
  • The ADS8329IRSAR outputs 16-bit data in a serial format. The data can be clocked out of the device using the SCLK pin, and the data is valid on the falling edge of the SCLK. The data should be latched into a microcontroller or FPGA on the rising edge of the SCLK. The data format is twos complement, and the output data rate is up to 500 kSPS.
  • The ADS8329IRSAR has a power-on reset (POR) circuit that resets the device to its default state when the power supply voltage rises above 1.5 V. The POR circuit ensures that the device is in a known state after power-up, and it takes approximately 10 ms for the device to become operational after power-up.
  • The ADS8329IRSAR does not require calibration. It has an internal calibration circuit that sets the gain and offset of the device. However, if the user wants to perform a system-level calibration, it can be done by applying a known input voltage and measuring the output code. The gain and offset can then be calculated and stored in the system's memory.
  • The maximum input voltage range of the ADS8329IRSAR is ±VREF, where VREF is the reference voltage pin. The VREF pin can be connected to a voltage source between 2.5 V and 5 V. The input voltage range can be adjusted by changing the VREF voltage.
