The recommended layout and routing for the ADS8329IRSAT involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, the device should be placed close to the analog signal sources, and the digital output traces should be routed away from the analog input traces to minimize digital noise coupling.
To optimize the performance of the ADS8329IRSAT in noisy environments, use a low-pass filter at the analog input, use a shielded cable for the analog input, and consider using a common-mode filter or a differential amplifier to reject common-mode noise. Additionally, ensure that the device is properly decoupled and that the power supply is clean and well-regulated.
The maximum sampling rate of the ADS8329IRSAT is 250 kSPS, but this can be affected by the clock frequency, the analog input frequency, and the system noise. To achieve the maximum sampling rate, ensure that the clock frequency is set to the maximum recommended value, and that the analog input frequency is within the recommended range.
The digital output data from the ADS8329IRSAT is in 16-bit two's complement format. To handle the data, use a microcontroller or FPGA to read the data from the device, and then process the data according to the application requirements. Ensure that the data is properly synchronized with the clock signal, and that the data is processed within the recommended latency period.
The power consumption of the ADS8329IRSAT is typically around 15 mW, but this can be minimized by reducing the clock frequency, using the power-down mode, and optimizing the analog input signal range. Additionally, consider using a low-power microcontroller or FPGA to interface with the device, and ensure that the power supply is well-regulated and efficient.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8329IRSAT Overview

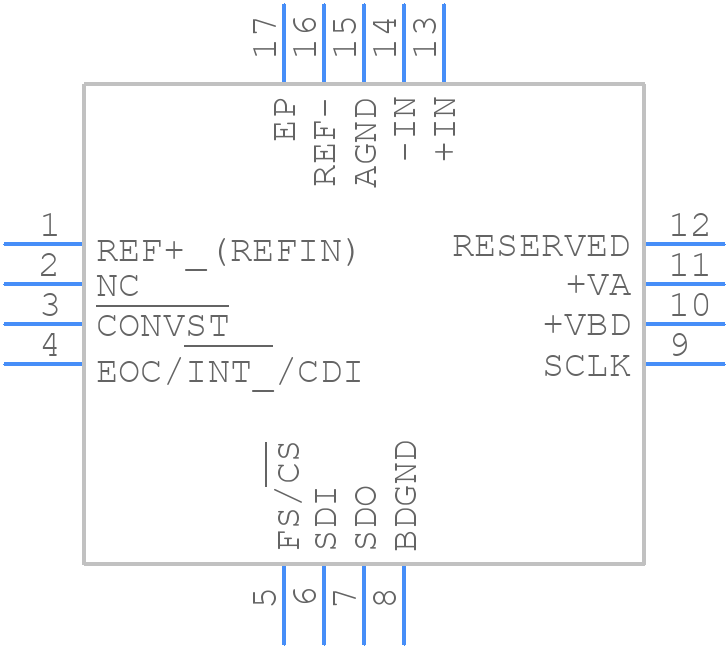

Use the download button to access the ADS8329IRSAT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS83,
or try a keyword search, such as Analog to Digital Converters
