Texas Instruments provides a layout guide and PCB design checklist in the ADS8330IBPWR datasheet and application notes. It's essential to follow these guidelines to minimize noise, ensure signal integrity, and optimize performance. Key considerations include keeping analog and digital signals separate, using a solid ground plane, and placing decoupling capacitors close to the device.
The ADS8330IBPWR has a programmable gain amplifier (PGA) that can be configured for different gain settings and input ranges using the device's control registers. The gain settings can be programmed through the SPI interface, and the input range can be selected using the VREF pin. Refer to the device's datasheet and programming guide for more information.
The ADS8330IBPWR has a built-in power-on reset (POR) circuit that ensures the device is properly initialized during power-up. The POR timing is typically around 10 ms, during which the device's internal registers are reset to their default values. System designers should ensure that the power supply is stable and the POR timing is accounted for in their system startup sequence.
The ADS8330IBPWR has built-in overvoltage protection (OVP) and undervoltage protection (UVP) circuits to prevent damage from input voltages exceeding the specified range. However, it's still essential to add external protection circuits, such as voltage clamps or resistors, to prevent damage from excessive voltage transients or faults. Refer to the device's datasheet and application notes for more information.
The ADS8330IBPWR's SPI interface operates at a maximum clock frequency of 10 MHz. The recommended clock timing includes a clock high time of 40 ns, clock low time of 40 ns, and a data setup time of 20 ns. System designers should ensure that their SPI master device meets these timing requirements to ensure reliable communication with the ADS8330IBPWR.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8330IBPWR Overview

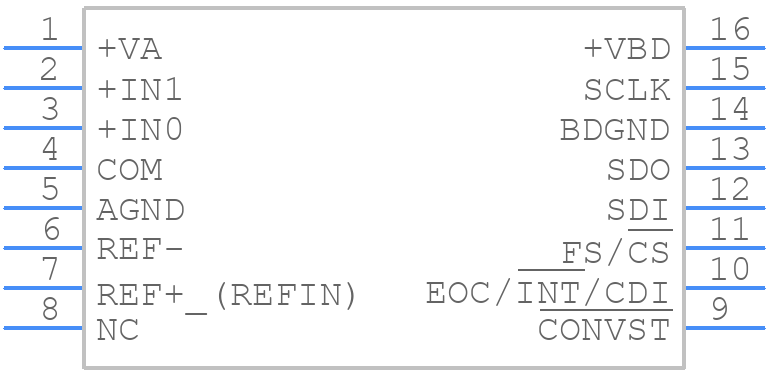

Use the download button to access the ADS8330IBPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS83,
or try a keyword search, such as Analog to Digital Converters
