ADS8330IPWR - Texas Instruments

Description: Analog to Digital Converters - ADC 2.7V-5.5V 16B 1MSPS Serial ADC

Download ADS8330IPWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

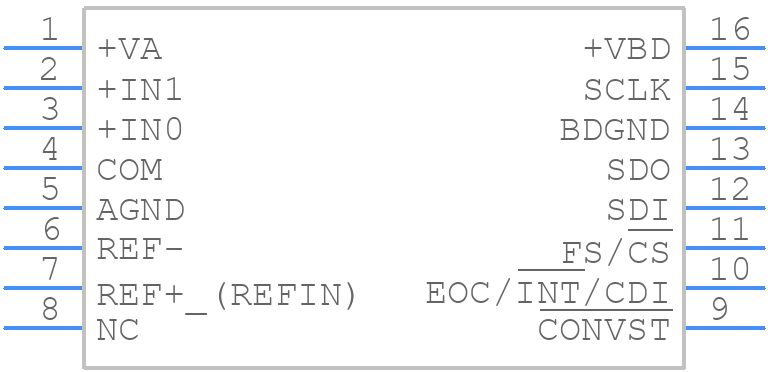

ADS8330IPWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS8330IPWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0016A
click to zoom
3D Models
ADS8330IPWR - Texas Instruments - 3D model - Small Outline Packages - PW0016A
click to zoom

ADS8330IPWR Details

  • Manufacturer Part Number:

    ADS8330IPWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.5 V

  • Analog Input Voltage-Min:

    2.7 V

  • Conversion Time-Max:

    0.786 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0038%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    2

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    6.1 mA

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ADS8330IPWR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in the ADS8330IPWR evaluation module user's guide (SLAU445). It's essential to follow this guide to minimize noise, ensure proper signal integrity, and achieve optimal performance.
  • The ADS8330IPWR has a built-in calibration mechanism. Refer to the calibration procedure outlined in the datasheet (section 8.3). Additionally, Texas Instruments provides a calibration guide (SLAA642) that provides more detailed information on the calibration process.
  • The maximum sampling rate of the ADS8330IPWR is 1 MSPS. To achieve this rate, you need to configure the device in the 'Fast' mode (CLKDIV = 0) and use an external clock source. Refer to the datasheet (section 7.3) for more information on clocking and sampling rate configuration.
  • The ADS8330IPWR outputs 16-bit digital data in a binary two's complement format. You can interface the device with a microcontroller or FPGA to handle the digital output data. Texas Instruments provides example code and interface guidelines in the datasheet (section 9) and application notes (SLAA643).
  • The power consumption of the ADS8330IPWR varies depending on the operating mode and sampling rate. In the 'Low-Power' mode, the device consumes around 2.5 mW. To reduce power consumption, you can use the 'Low-Power' mode, reduce the sampling rate, or use the device's power-down mode when not in use. Refer to the datasheet (section 7.4) for more information on power consumption and power management.
