The recommended layout and routing for the ADS8330IRSAT involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, it is recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
To optimize the performance of the ADS8330IRSAT in noisy environments, it is recommended to use a low-pass filter at the input, use a shielded cable for the analog input, and use a common-mode choke to reduce electromagnetic interference (EMI). Additionally, using a low-noise power supply and minimizing the distance between the ADC and the analog input can also help to improve performance.
The maximum sampling rate that can be achieved with the ADS8330IRSAT is 1 MSPS (million samples per second). However, the actual sampling rate may be limited by the system clock frequency, the conversion time, and the settling time of the analog input.
The ADS8330IRSAT does not require calibration for optimal performance. However, it is recommended to perform a system calibration to ensure that the ADC is operating within the specified accuracy. This can be done by applying a known input voltage and measuring the output code to determine the gain and offset errors.
The power consumption of the ADS8330IRSAT depends on the operating mode and the clock frequency. In normal mode, the typical power consumption is 15 mW at 1 MSPS. In low-power mode, the typical power consumption is 5 mW at 100 kSPS.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8330IRSAT Overview

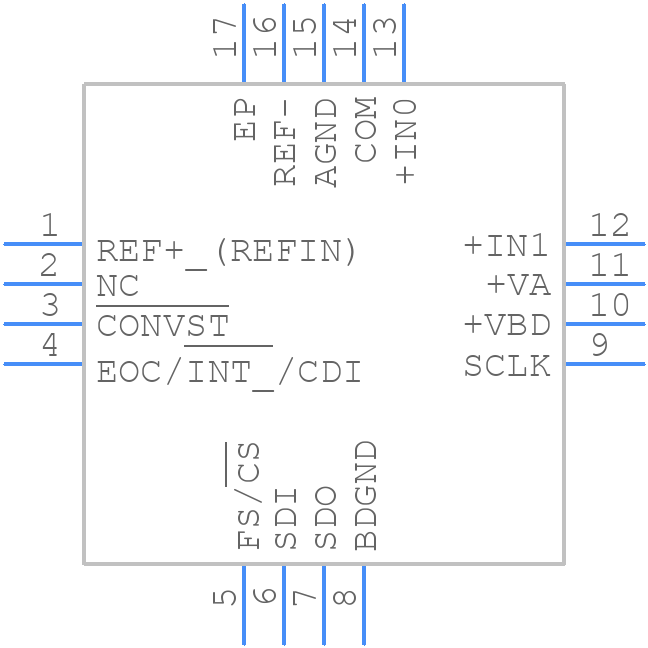

Use the download button to access the ADS8330IRSAT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS83,
or try a keyword search, such as Analog to Digital Converters
