Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep analog and digital signals separate. Use short, direct traces for analog signals, and avoid crossing digital signals over analog signals. Also, use a common mode filter or ferrite bead to filter out high-frequency noise.
To optimize the ADC's performance, ensure the input signal is within the recommended range, and adjust the gain and offset settings accordingly. Also, consider using the built-in calibration feature to improve accuracy. Additionally, consider using an external reference voltage to improve performance.
The recommended power-up sequence is to first apply the analog supply voltage (AVDD), followed by the digital supply voltage (DVDD), and then the clock signal. This ensures that the ADC is properly initialized and ready for operation.
The ADS8331IBRGET has a pipeline delay of 3 clock cycles. To handle this, ensure that your system design takes into account the latency and pipelining of the ADC. You can use the ADC's built-in FIFO to buffer data and reduce the impact of latency.
The ADS8331IBRGET is rated for operation from -40°C to 125°C. To ensure reliable operation, ensure good thermal design practices, such as providing adequate heat sinking and airflow. Also, consider using thermal interface materials to improve heat transfer.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
ADS8331IBRGET Overview

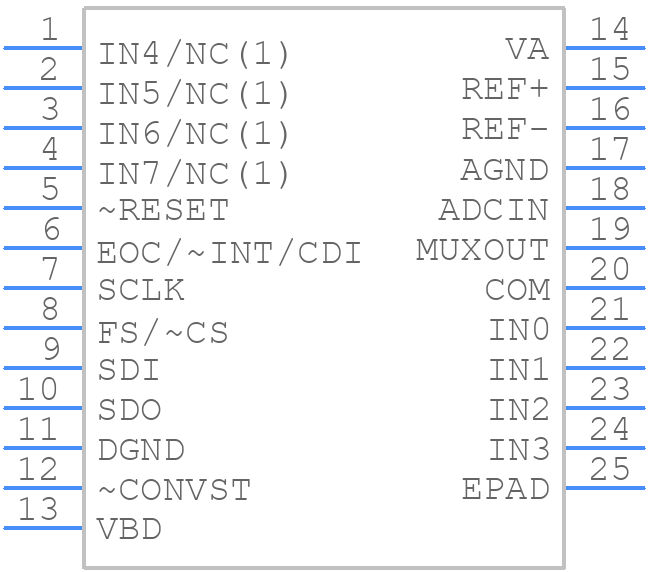

Use the download button to access the ADS8331IBRGET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS83,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
