The recommended layout and routing for the ADS8331IRGER involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
To optimize the performance of the ADS8331IRGER in noisy environments, use a low-pass filter at the input, use a shielded cable for the analog input, and consider using a common-mode filter. Additionally, ensure that the analog and digital grounds are separated and that the digital noise is not coupled into the analog circuitry.
The recommended power-up sequence for the ADS8331IRGER is to power up the analog supply (AVDD) first, followed by the digital supply (DVDD), and then the clock signal. This ensures that the analog circuitry is stable before the digital circuitry is powered up.
The clock signal for the ADS8331IRGER should be a clean, low-jitter clock signal. It's recommended to use a clock signal with a frequency of 10 MHz to 50 MHz, and to use a clock buffer or a clock generator to ensure a stable clock signal.
The recommended method for synchronizing the ADS8331IRGER with other devices is to use the SYNC pin to synchronize the conversion with an external signal. This ensures that the ADC conversions are synchronized with other devices in the system.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
ADS8331IRGER Overview

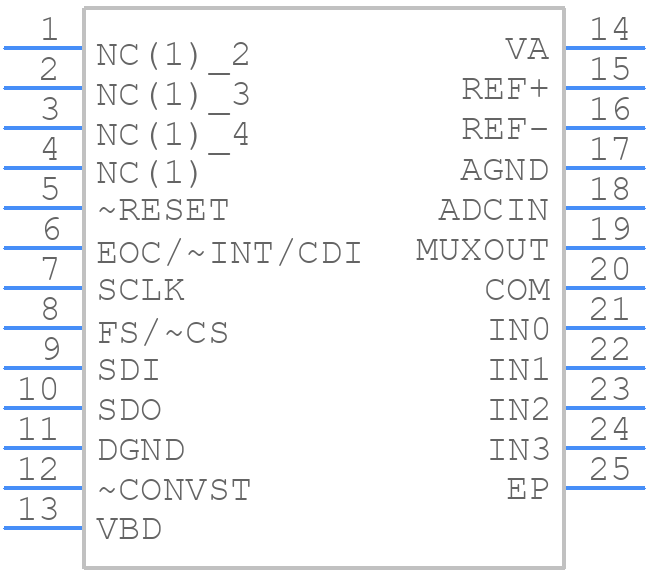

Use the download button to access the ADS8331IRGER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS83,
or try a keyword search, such as Analog to Digital Converters
