A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signal traces separate and away from each other. Additionally, use a low-ESR capacitor for the AVDD and DVDD pins, and keep the input and output traces as short as possible.
To optimize performance in a noisy environment, use a low-pass filter at the input, use a shielded cable for the input signal, and consider using a common-mode filter or a differential amplifier to reject common-mode noise. Additionally, use a low-noise voltage regulator for the AVDD and DVDD pins.
The recommended power-up sequence is to power up the AVDD pin first, followed by the DVDD pin. This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent any potential latch-up conditions.
The output data from the ADS8332IBPWR is in a serial format, so you'll need to use a serial interface such as SPI or I2C to communicate with the device. You'll also need to use a FIFO or a buffer to handle the data, and consider using a DMA controller to offload the data transfer from the CPU.
The maximum sampling rate of the ADS8332IBPWR is 1 MSPS. To achieve this rate, you'll need to use a high-speed clock source, such as a crystal oscillator, and ensure that the input signal is properly filtered and conditioned. Additionally, you'll need to use a high-speed ADC driver and a low-jitter clock source.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8332IBPWR Overview

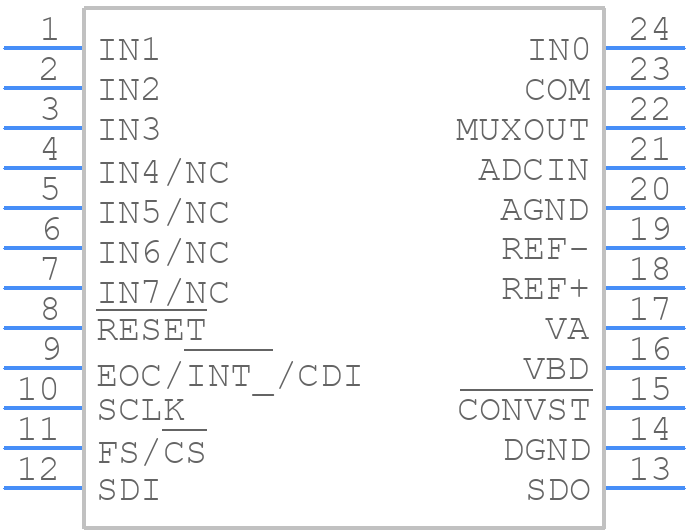

Use the download button to access the ADS8332IBPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS83,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
