ADS8332IPWR - Texas Instruments

Description: Analog to Digital Converters - ADC 2.7-5.5V,16B 500KSPS Low Pwr Serial ADC

Download ADS8332IPWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

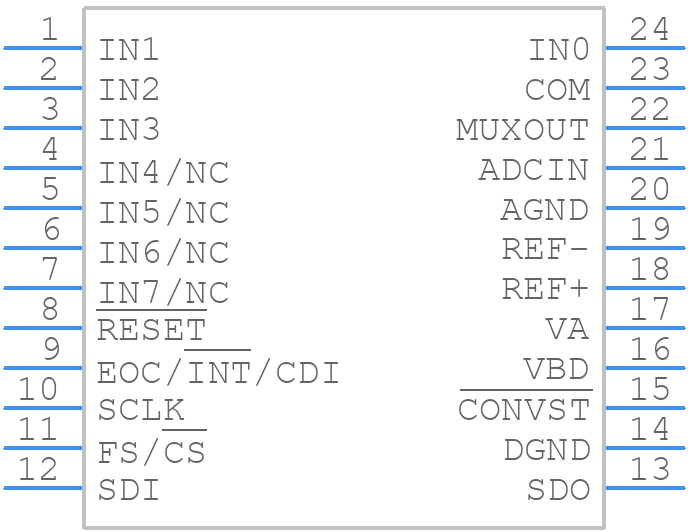

ADS8332IPWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS8332IPWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0024A
click to zoom
3D Models
ADS8332IPWR - Texas Instruments - 3D model - Small Outline Packages - PW0024A
click to zoom

ADS8332IPWR Details

  • Manufacturer Part Number:

    ADS8332IPWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-24

  • Pin Count:

    24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    4.2 V

  • Conversion Time-Max:

    2 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    7.8 mm

  • Linearity Error-Max (EL):

    0.0046%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    8

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.5 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    6.5 mA

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ADS8332IPWR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in the ADS8332IPWR Evaluation Module User's Guide (SLAU445). It's essential to follow this guide to ensure optimal performance and minimize noise coupling.
  • The ADS8332IPWR datasheet provides general guidelines for AFE optimization. However, for specific applications, it's recommended to consult the Texas Instruments Analog-to-Digital Converter (ADC) Optimization Guide (SLAA544) and the ADS8332IPWR Application Note (SLAA555). These resources provide detailed guidance on optimizing the AFE for various applications.
  • The ADS8332IPWR can operate at a maximum sampling rate of 1 MSPS. However, the actual achievable sampling rate may be limited by the system's clock frequency, analog input bandwidth, and digital output data rate. Consult the datasheet and application notes for more information on optimizing the sampling rate for your specific application.
  • The ADS8332IPWR outputs 16-bit digital data in a serial format. You'll need to use a microcontroller or FPGA to receive and process the data. Texas Instruments provides example code and interface guidelines in the ADS8332IPWR Evaluation Module User's Guide (SLAU445) and the ADS8332IPWR Application Note (SLAA555).
  • The ADS8332IPWR has a typical power consumption of 15 mW at 1 MSPS. To optimize power consumption, use the device's power-down mode, reduce the sampling rate, and minimize the analog input voltage range. Consult the datasheet and application notes for more information on power optimization techniques.
