Texas Instruments provides a recommended layout and routing guide in the ADS8341EBG4 datasheet, but it's also recommended to follow general high-speed analog-to-digital converter (ADC) layout guidelines, such as keeping analog and digital signals separate, using a solid ground plane, and minimizing signal traces near the ADC inputs.
To optimize the ADS8341EBG4's performance, consider factors such as input signal frequency, amplitude, and impedance, as well as the desired signal-to-noise ratio (SNR) and spurious-free dynamic range (SFDR). Consult the datasheet and application notes for guidance on optimizing the ADC's performance for your specific application.
The ADS8341EBG4 can operate with clock frequencies up to 1 MHz, but the maximum clock frequency may be limited by the specific application and system requirements. Consult the datasheet and application notes for guidance on selecting the optimal clock frequency for your design.
The ADS8341EBG4 outputs 16-bit digital data, which can be read by a microcontroller or DSP through a serial interface such as SPI or I2C. The specific implementation will depend on the microcontroller or DSP being used, but Texas Instruments provides example code and application notes to help with the integration process.
The ADS8341EBG4 has a typical power consumption of 15 mW at 1 MHz, but this can vary depending on the specific application and operating conditions. To minimize power consumption, consider using the ADC's power-down mode, reducing the clock frequency, and optimizing the analog input signal amplitude and frequency.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8341EBG4 Overview

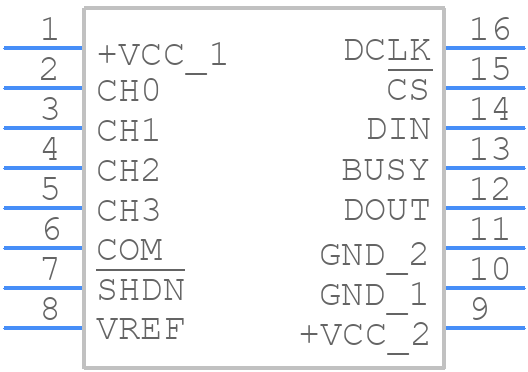

Use the download button to access the ADS8341EBG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS83,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
