ADS8343E/2K5 - Texas Instruments

Description: Analog to Digital Converters - ADC 16-Bit 4-Ch Serial Output Sampling

Download ADS8343E/2K5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

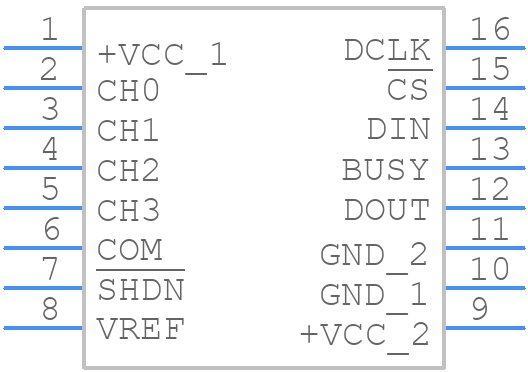

ADS8343E/2K5 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS8343E/2K5 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DBQ0016A
click to zoom
3D Models
ADS8343E/2K5 - Texas Instruments - 3D model - Small Outline Packages - DBQ0016A
click to zoom

ADS8343E/2K5 Details

  • Manufacturer Part Number:

    ADS8343E/2K5

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    1

  • Analog Input Voltage-Max:

    5.25 V

  • Analog Input Voltage-Min:

    -1.25 V

  • Conversion Time-Max:

    6.67 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Linearity Error-Max (EL):

    0.0183%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    4

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.1 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ADS8343E/2K5 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a layout and routing guide in the application note SLAA332, which recommends keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces.
  • The ADS8343E/2K5 has an internal calibration circuit that can be used to calibrate the device. The calibration process involves applying a known input voltage and then reading the output code. The device can then be calibrated by adjusting the internal offset and gain registers.
  • The maximum sampling rate of the ADS8343E/2K5 is 100 kSPS, but this can be limited by the system clock frequency, the conversion mode, and the interface mode. The datasheet provides more information on the sampling rate limitations.
  • Yes, the ADS8343E/2K5 can be used in a multi-channel application by using multiple devices or by using a multiplexer to switch between multiple input channels. However, the device does not have a built-in multiplexer, so an external multiplexer would be required.
  • The power consumption of the ADS8343E/2K5 is typically around 15 mW at 3 V and 100 kSPS. Power consumption can be minimized by reducing the clock frequency, using the power-down mode, and optimizing the system design to reduce the number of conversions required.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADS8343E/2K5 Overview

Use the download button to access the ADS8343E/2K5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS83, or try a keyword search, such as Analog to Digital Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
