Texas Instruments provides a recommended layout and routing guide in the ADS8344EBG4 datasheet, but it's also recommended to follow general high-speed analog-to-digital converter (ADC) layout guidelines, such as keeping analog and digital signals separate, using a solid ground plane, and minimizing signal trace lengths and vias.
Optimizing the performance of the ADS8344EBG4 requires careful consideration of the analog input signal, clock signal, and power supply. Ensure the analog input signal is within the specified range, the clock signal is stable and within the recommended frequency range, and the power supply is clean and well-regulated. Additionally, consider using a dedicated analog power supply and a low-noise clock source.
The maximum sampling rate of the ADS8344EBG4 is 100 kSPS, but this can be affected by the clock frequency, analog input signal bandwidth, and system noise. To achieve the maximum sampling rate, ensure the clock frequency is within the recommended range (1-4 MHz) and the analog input signal is properly filtered and conditioned.
The ADS8344EBG4 outputs 16-bit digital data in a serial format. To handle this data, you'll need to use a microcontroller or digital signal processor (DSP) that can receive and process the serial data. Ensure the receiving device is properly configured to receive the data and that the data is properly synchronized and decoded.
The power consumption of the ADS8344EBG4 is typically around 15 mW at 100 kSPS, but this can vary depending on the clock frequency, analog input signal, and power supply voltage. To minimize power consumption, consider using a lower clock frequency, reducing the power supply voltage, and using power-down modes when not actively converting.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8344EBG4 Overview

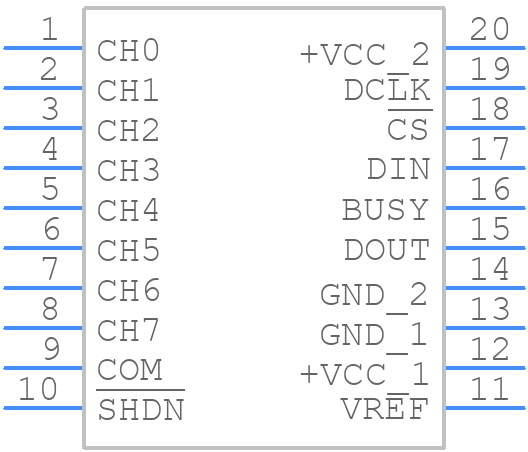

Use the download button to access the ADS8344EBG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS83,
or try a keyword search, such as Analog to Digital Converters
