ADS8344NBG4 - Texas Instruments

Description: Analog to Digital Converters - ADC 16-Bit 8-Ch Serial Output Sampling

Download ADS8344NBG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

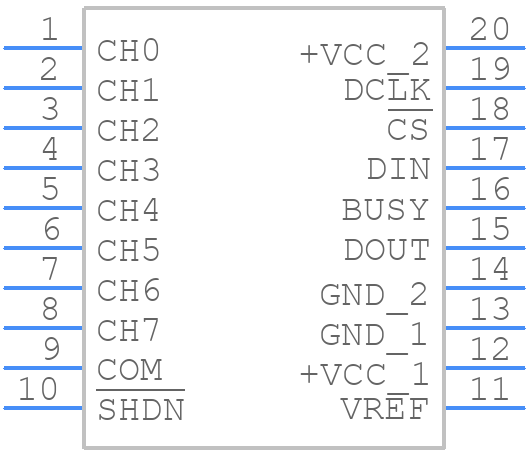

ADS8344NBG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS8344NBG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DB0020A
click to zoom
3D Models
ADS8344NBG4 - Texas Instruments - 3D model - Small Outline Packages - DB0020A
click to zoom

ADS8344NBG4 Details

  • Manufacturer Part Number:

    ADS8344NBG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    SSOP-20

  • Pin Count:

    20

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.25 V

  • Conversion Time-Max:

    6.67 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    7.2 mm

  • Linearity Error-Max (EL):

    0.0092%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    8

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.1 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

ADS8344NBG4 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in the ADS8344NBG4 evaluation module user's guide (SLAU144). It's essential to follow this guide to ensure proper operation and minimize noise and interference.
  • The ADS8344NBG4 outputs 16-bit data in a serial format. You'll need to use a microcontroller or FPGA to receive and process the data. You can use a SPI or QSPI interface to communicate with the device. Make sure to follow the timing diagrams and protocol specified in the datasheet.
  • The POR timing is not explicitly stated in the datasheet. According to Texas Instruments, the POR timing is typically around 10 ms, but it can vary depending on the specific application and power supply conditions. It's recommended to add an external POR circuit or use a microcontroller to handle the power-on reset sequence.
  • Yes, the ADS8344NBG4 can be used in a multiplexed configuration. However, you'll need to add external multiplexers and control logic to select the desired input channels. Make sure to consider the additional noise and settling time introduced by the multiplexers when designing your system.
  • The ADS8344NBG4 requires a two-point calibration procedure to ensure accurate conversions. You'll need to apply a known input voltage to the device and measure the output code. Then, use the measured code to calculate the gain and offset coefficients. Refer to the datasheet and application notes for more details on the calibration procedure.
