Texas Instruments provides a layout and routing guide in the application note SLAA382, which includes recommendations for PCB layout, component placement, and routing to minimize noise and ensure optimal performance.
The ADS8344NG4 has high-speed digital outputs that require careful handling to prevent signal degradation and noise coupling. Use a low-impedance transmission line, keep the output traces short and away from noise sources, and use a termination resistor to match the output impedance.
Use a low-pass filter with a cutoff frequency below the Nyquist frequency (half the sampling rate) to remove high-frequency noise and aliasing. A simple RC filter or a more complex active filter can be used, depending on the specific application requirements.
Use a stable clock source, such as a crystal oscillator, and ensure that the clock signal is properly routed and terminated. Also, use the SYNC pin to synchronize the conversion process with other devices in the system, if necessary.
The recommended power-on sequence is to apply the analog supply voltage (AVCC) first, followed by the digital supply voltage (DVCC), and finally the clock signal. This ensures that the internal biasing and reference circuits are properly initialized.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8344NG4 Overview

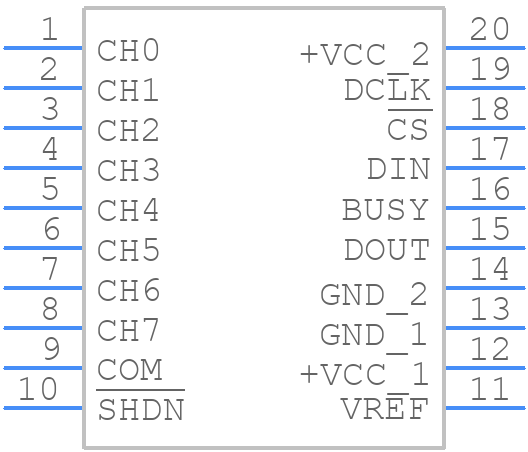

Use the download button to access the ADS8344NG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS83,
or try a keyword search, such as Analog to Digital Converters
