ADS8345N/1K - Texas Instruments

Description: Octal Channel Single ADC SAR 100ksps 16-bit Serial 20-Pin SSOP T/R

Download ADS8345N/1K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

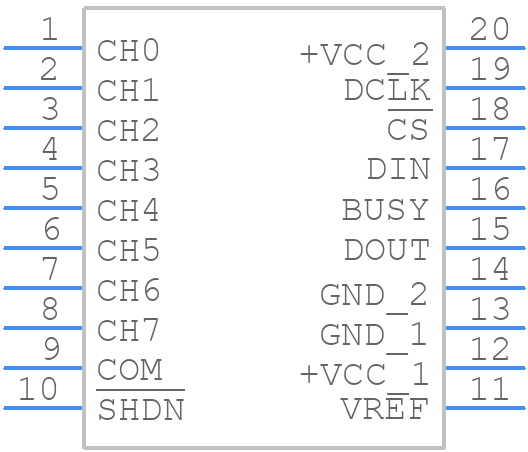

Symbol
ADS8345N/1K - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS8345N/1K - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DB0020A
click to zoom
3D Models
ADS8345N/1K - Texas Instruments - 3D model - Small Outline Packages - DB0020A
click to zoom

ADS8345N/1K Details

  • Manufacturer Part Number:

    ADS8345N/1K

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    SSOP-20

  • Pin Count:

    20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    2.6 V

  • Analog Input Voltage-Min:

    2.7 V

  • Conversion Time-Max:

    6.66 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    7.2 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    8

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.1 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    2 mA

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

ADS8345N/1K Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The analog input traces should be short and direct, and the digital output traces should be routed away from the analog inputs. Additionally, decoupling capacitors should be placed close to the device's power pins.
  • The POR and BOR circuits in the ADS8345N/1K ensure that the device resets properly during power-up and power-down sequences. To handle these resets, the system designer should ensure that the power supply ramps up and down slowly, and that the device's reset pin is properly connected to a reset circuit or a microcontroller's reset input.
  • The ADS8345N/1K can operate with a clock frequency between 1 MHz and 4 MHz. A clock frequency of 2 MHz is recommended for optimal performance. The clock source can be an external clock signal or the device's internal oscillator. If using an external clock, it should be a stable, low-jitter clock signal.
  • The ADS8345N/1K does not require calibration, as it is a self-calibrating device. However, the system designer should ensure that the device is operated within its specified temperature range and that the analog input signals are within the device's specified input range.
  • The ADS8345N/1K's digital output can be interfaced with a microcontroller or digital signal processor using a standard SPI or QSPI interface. The system designer should ensure that the interface is properly configured and that the device's output data is properly synchronized with the microcontroller's or DSP's clock signal.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADS8345N/1K Overview

Use the download button to access the ADS8345N/1K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS83, or try a keyword search, such as Analog to Digital Converters
