The recommended layout and routing for the ADS8350IRTER involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
To optimize the performance of the ADS8350IRTER in noisy environments, use a low-pass filter at the input, use a shielded cable for the analog input, and consider using a common-mode filter. Additionally, ensure that the analog and digital grounds are separated and that the digital noise is not coupled into the analog circuitry.
The maximum sampling rate that can be achieved with the ADS8350IRTER is 250 kSPS. However, the actual sampling rate may be limited by the system's clock frequency, the analog input frequency, and the digital interface used.
The ADS8350IRTER has an internal calibration circuit that can be used to calibrate the device. The calibration process involves applying a known input voltage and adjusting the internal calibration registers to achieve optimal performance. The calibration process should be performed at power-up and after any changes to the system's operating conditions.
The power consumption of the ADS8350IRTER depends on the operating frequency, the analog input frequency, and the digital interface used. The typical power consumption is around 15 mW at 250 kSPS, but it can be as low as 5 mW at lower sampling rates.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8350IRTER Overview

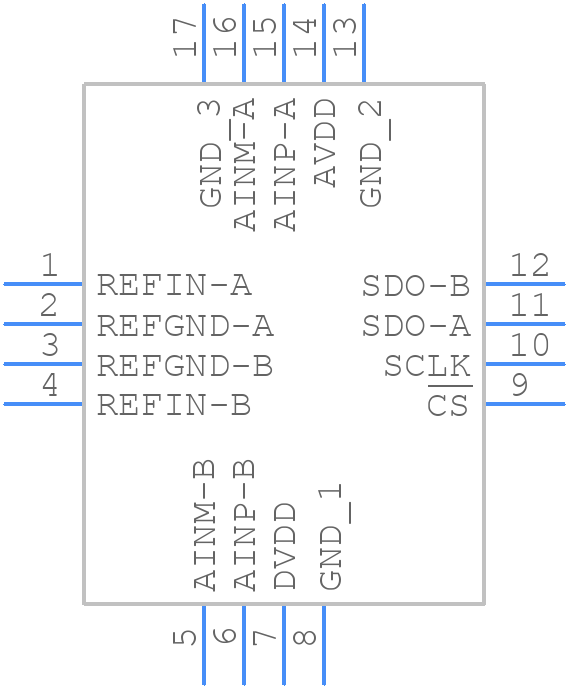

Use the download button to access the ADS8350IRTER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS83,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
