Texas Instruments provides a recommended layout and routing guide in the ADS8354IPW datasheet, which includes guidelines for placing components, routing traces, and minimizing noise. Additionally, the TI website has a PCB layout guide and a layout checklist that can be used as a reference.
The ADS8354IPW has a built-in calibration circuit that can be used to calibrate the device. The calibration process involves applying a known input voltage and adjusting the internal calibration registers to achieve the desired accuracy. Texas Instruments provides a calibration guide in the datasheet and also offers a calibration software tool that can be used to simplify the process.
The maximum sampling rate of the ADS8354IPW is 250 kSPS, but this can be affected by the clock frequency, input signal frequency, and other factors. The datasheet provides a detailed description of the sampling rate limitations and how to optimize the device for high-speed applications.
The ADS8354IPW outputs digital data in a 16-bit or 24-bit format, depending on the configuration. The datasheet provides a detailed description of the digital output format, including the bit ordering, data alignment, and error detection. Engineers can use this information to develop software or firmware to handle the digital output data and perform tasks such as data processing, filtering, and storage.
The power consumption of the ADS8354IPW depends on the operating mode, clock frequency, and other factors. The datasheet provides a detailed description of the power consumption characteristics, including the typical current consumption and power dissipation. To minimize power consumption, engineers can use techniques such as reducing the clock frequency, using the power-down mode, and optimizing the analog input range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8354IPW Overview

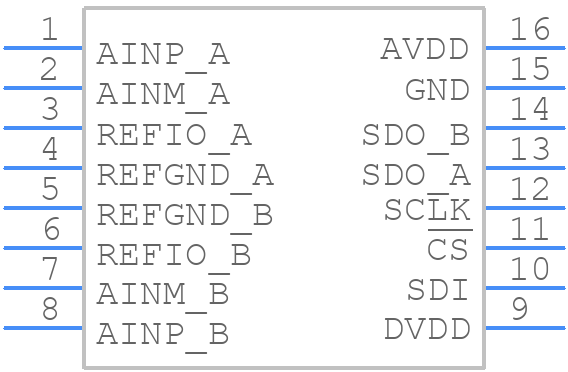

Use the download button to access the ADS8354IPW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS83,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
