Texas Instruments provides a layout guide and PCB design checklist in the ADS8355IRTET datasheet and application notes. It's essential to follow these guidelines to ensure proper operation and minimize noise and interference. Key considerations include keeping analog and digital signals separate, using a solid ground plane, and placing decoupling capacitors close to the device.
To optimize performance, consider the specific requirements of your application, such as signal frequency, amplitude, and noise tolerance. Adjust the gain, offset, and filter settings accordingly. Additionally, ensure proper power supply decoupling, and consider using a dedicated analog power supply if necessary. Consult the datasheet and application notes for guidance on optimizing performance.
The ADS8355IRTET has a maximum sampling rate of 250 kSPS. However, the actual achievable sampling rate may be limited by the system's clock frequency, analog input bandwidth, and digital interface speed. Consult the datasheet and application notes for guidance on achieving the highest possible sampling rate in your specific application.
The ADS8355IRTET provides error flags and interrupt signals to indicate errors and exceptions, such as overflow, underflow, and clock errors. Implement error handling routines in your firmware to detect and respond to these events. Consult the datasheet and application notes for guidance on error handling and debugging.
Yes, the ADS8355IRTET can be used in multi-channel or multiplexed configurations. However, this requires careful consideration of channel-to-channel crosstalk, noise, and signal integrity. Consult the datasheet and application notes for guidance on implementing multi-channel or multiplexed configurations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8355IRTET Overview

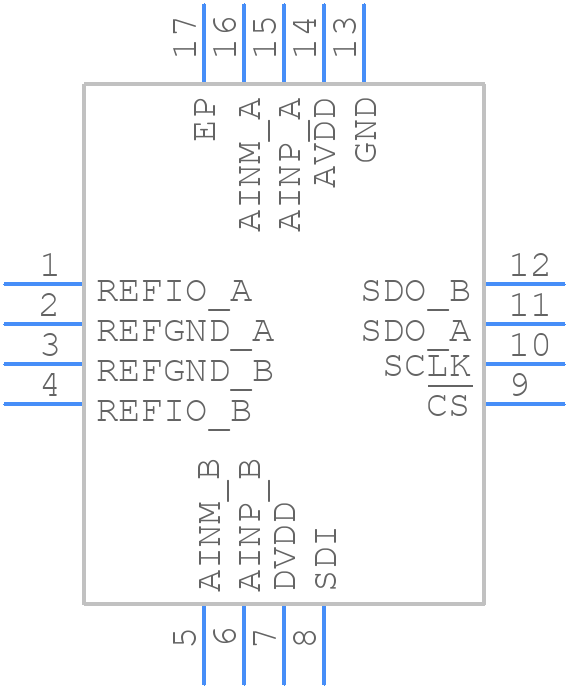

Use the download button to access the ADS8355IRTET schematic symbol, PCB footprint, and 3D model.
