ADS8361IDBQRG4 - Texas Instruments

Description: Analog to Digital Converters - ADC 16-Bit 500 kSPS 2 ADC 4ch ser out

Download ADS8361IDBQRG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

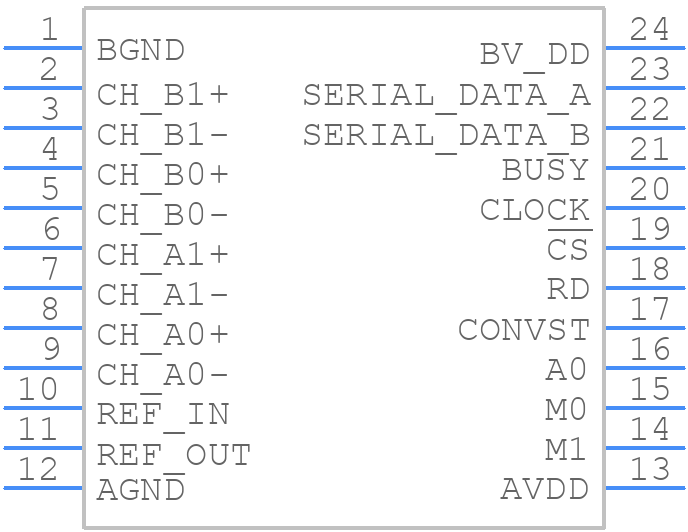

ADS8361IDBQRG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS8361IDBQRG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DBQ(R-PDSO-G24)
click to zoom
3D Models
ADS8361IDBQRG4 - Texas Instruments - 3D model - Small Outline Packages - DBQ(R-PDSO-G24)
click to zoom

ADS8361IDBQRG4 Details

  • Manufacturer Part Number:

    ADS8361IDBQRG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SSOP-24

  • Pin Count:

    24

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    2.6 V

  • Analog Input Voltage-Min:

    -2.6 V

  • Conversion Time-Max:

    160 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    4

  • Number of Bits:

    16

  • Number of Functions:

    2

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.5 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    35 mA

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ADS8361IDBQRG4 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a layout guide and PCB design checklist in the ADS8361 datasheet, which includes recommendations for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The ADS8361IDBQRG4 has an internal calibration circuit that can be used to calibrate the device. The calibration process involves applying a known input voltage and then reading the output code. The device can then be calibrated by adjusting the internal offset and gain registers. Texas Instruments provides a calibration procedure in the datasheet and also offers a calibration software tool.
  • The maximum sampling rate of the ADS8361IDBQRG4 is 500 kSPS. The power consumption of the device increases with the sampling rate, and Texas Instruments provides a power consumption vs. sampling rate graph in the datasheet. At the maximum sampling rate, the power consumption is approximately 35 mW.
  • The ADS8361IDBQRG4 has an internal overvoltage protection circuit that protects the device from input voltages up to 12 V. However, it is still recommended to use external protection circuits such as voltage limiters or clamp circuits to protect the device from overvoltage conditions. For undervoltage conditions, the device has a power-on reset circuit that resets the device when the supply voltage falls below a certain threshold.
  • The ADS8361IDBQRG4 uses a serial interface protocol, and Texas Instruments recommends using a SPI-compatible interface. The device requires a clock frequency of up to 20 MHz, and the timing requirements for the clock and data signals are specified in the datasheet.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADS8361IDBQRG4 Overview

Use the download button to access the ADS8361IDBQRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS83, or try a keyword search, such as Analog to Digital Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
