ADS8361IRHBT - Texas Instruments

Description: 16-Bit 500 kSPS 2 ADCs, 4ch, serial out

Download ADS8361IRHBT Model

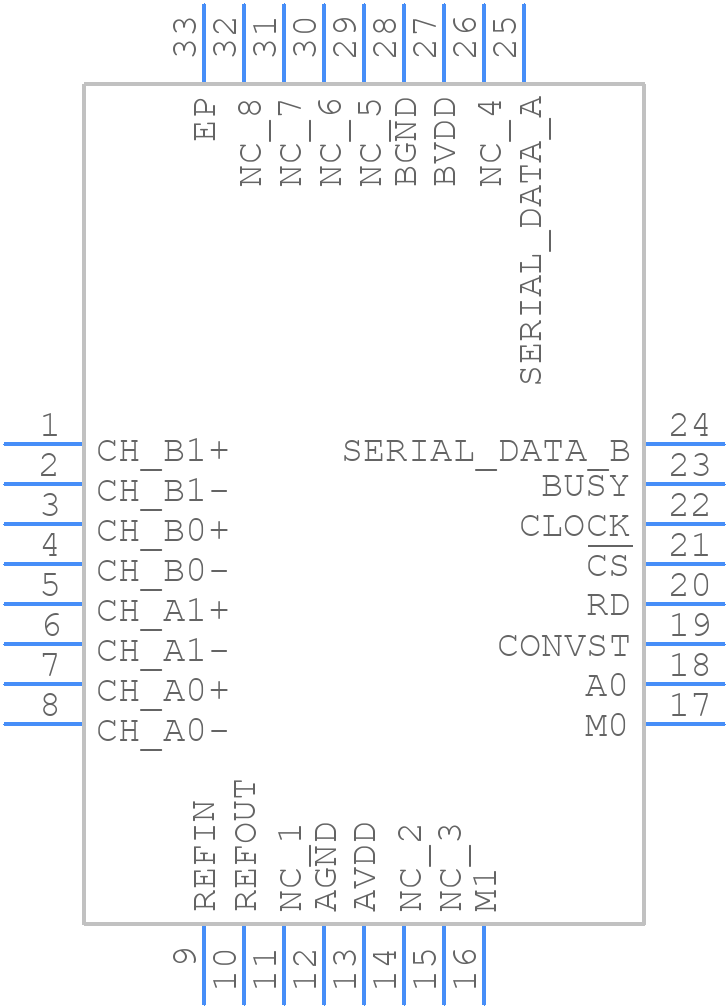

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADS8361IRHBT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB (S-PVQFN-N32)_1
click to zoom
3D Models
ADS8361IRHBT - Texas Instruments  - 3D model - Quad Flat No-Lead - RHB (S-PVQFN-N32)_1
click to zoom

ADS8361IRHBT Details

  • Manufacturer Part Number:

    ADS8361IRHBT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    HVQCCN-32

  • Pin Count:

    32

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    2.6 V

  • Analog Input Voltage-Min:

    -2.6 V

  • Conversion Time-Max:

    160 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    4

  • Number of Bits:

    16

  • Number of Functions:

    2

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.5 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    35 mA

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ADS8361IRHBT Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signal traces separate. Additionally, use a low-ESR capacitor for the AVDD pin and a 0.1uF capacitor for the DVDD pin. Refer to the TI application note 'PCB Layout Guidelines for Switching Regulators' for more information.
  • To optimize performance in a noisy environment, use a low-pass filter at the input, use a shielded cable for the analog input, and keep the analog circuitry away from the digital circuitry. Additionally, use a common-mode filter or a differential amplifier to reject common-mode noise. Refer to the TI application note 'Noise Reduction Techniques for Analog-to-Digital Converters' for more information.
  • The recommended power-up sequence is to power up the AVDD pin first, followed by the DVDD pin. This ensures that the analog circuitry is powered up before the digital circuitry. Additionally, ensure that the AVDD pin is powered up before the analog input signal is applied.
  • If the ADS8361IRHBT is not converting data correctly, check the power supply voltages, ensure that the clock signal is within the specified frequency range, and verify that the analog input signal is within the specified range. Also, check the digital output data format and ensure that it matches the expected format. Refer to the TI application note 'Troubleshooting Analog-to-Digital Converters' for more information.
  • The recommended method is to use the CLKIN pin to synchronize the ADS8361IRHBT with an external clock source. Ensure that the external clock frequency is within the specified range and that the clock signal is clean and stable. Additionally, use a clock buffer or a clock conditioner to ensure a clean clock signal.
