Texas Instruments provides a recommended layout and routing guide in the ADS8371 datasheet, which includes guidelines for placing components, routing analog and digital signals, and minimizing noise and interference. Additionally, TI also provides a PCB layout example in the ADS8371 evaluation module documentation.
The ADS8371IBPFBT does not require calibration, as it is a self-calibrating ADC. However, it's recommended to follow the recommended power-up sequence and initialization procedure outlined in the datasheet to ensure optimal performance.
The ADS8371IBPFBT can achieve a maximum sampling rate of 1 MSPS (million samples per second) in continuous conversion mode. However, the actual sampling rate may be limited by the system's clock frequency, analog input bandwidth, and digital interface speed.
Yes, the ADS8371IBPFBT can be used with an external reference voltage. The device has a dedicated reference input pin (REFIN) that allows an external reference voltage to be applied. The external reference voltage should be within the specified range of 2.5V to 5.5V.
The ADS8371IBPFBT provides several error detection mechanisms, including overrange detection, underrange detection, and clock monitor detection. The device also provides an error flag output (EF) that can be used to detect errors and exceptions. Engineers can use these mechanisms to implement error handling and exception routines in their system design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8371IBPFBT Overview

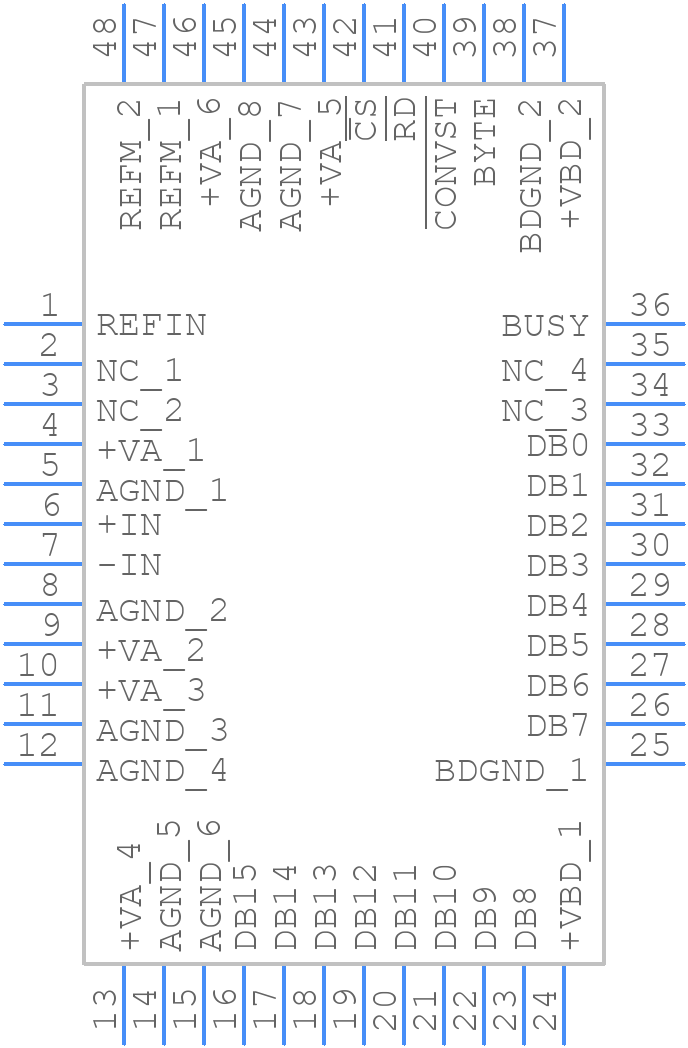

Use the download button to access the ADS8371IBPFBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS83,
or try a keyword search, such as Analog to Digital Converters
