Texas Instruments provides a recommended layout and routing guide in the ADS8371IPFBT datasheet, which includes guidelines for placing components, routing traces, and minimizing noise. Additionally, the TI website has a PCB layout example and a layout checklist that can be used as a reference.
The ADS8371IPFBT has an internal calibration circuit that can be used to calibrate the device. The calibration process involves applying a known input voltage and then using the CAL pin to store the calibration data. The datasheet provides a detailed calibration procedure, and TI also provides a calibration software tool that can be used to simplify the process.
The maximum sampling rate of the ADS8371IPFBT is 1 MSPS (million samples per second). However, the actual sampling rate that can be achieved depends on the clock frequency, the conversion mode, and the interface mode. The datasheet provides a detailed table that shows the maximum sampling rate for different clock frequencies and conversion modes.
The ADS8371IPFBT outputs digital data in a 16-bit or 24-bit format, depending on the conversion mode. The digital output data can be handled using a microcontroller or a digital signal processor. TI provides a software development kit (SDK) that includes example code and a user guide to help with data handling and processing.
The power consumption of the ADS8371IPFBT depends on the operating mode, the clock frequency, and the supply voltage. The datasheet provides a detailed power consumption table. To reduce power consumption, the device can be operated in a low-power mode, the clock frequency can be reduced, or the supply voltage can be lowered. Additionally, TI provides a power-saving feature called 'Nap' mode that can be used to reduce power consumption when the device is not actively converting.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8371IPFBT Overview

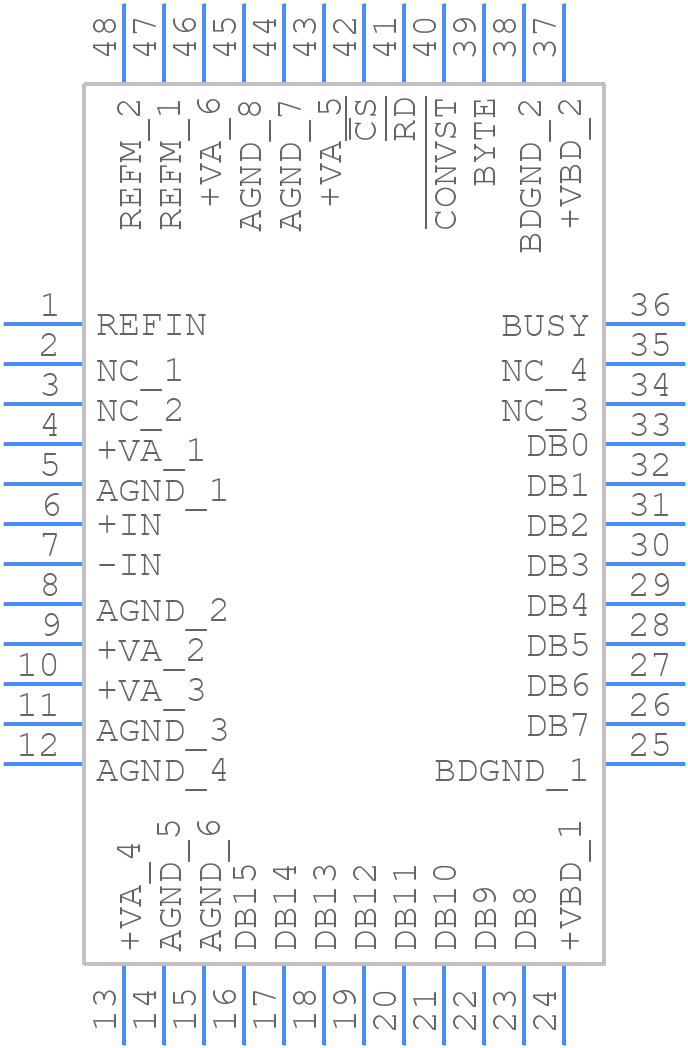

Use the download button to access the ADS8371IPFBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS83,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
