ADS8380IBRHPT - Texas Instruments

Description: 18-Bit 600KSPS Serial ADC with Ref and Unipolar Pseudo Diff Input

Download ADS8380IBRHPT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

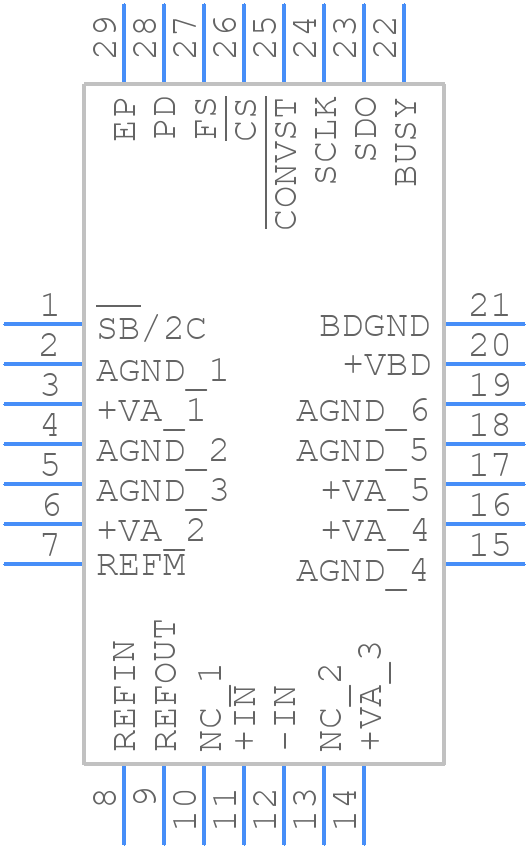

ADS8380IBRHPT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS8380IBRHPT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHP(S-PVQFN-N258)
click to zoom
3D Models
ADS8380IBRHPT - Texas Instruments - 3D model - Quad Flat No-Lead - RHP(S-PVQFN-N258)
click to zoom

ADS8380IBRHPT Details

  • Manufacturer Part Number:

    ADS8380IBRHPT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    HVQCCN-28

  • Pin Count:

    28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    4.2 V

  • Conversion Time-Max:

    1.16 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PQCC-N28

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    1

  • Number of Bits:

    18

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.24SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.6 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    25 mA

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

ADS8380IBRHPT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a layout and routing guide in the ADS8380IBRHPT evaluation module documentation, which includes recommendations for component placement, trace routing, and grounding to minimize noise and ensure optimal performance.
  • The ADS8380IBRHPT has an internal calibration circuit that can be used to calibrate the device. The calibration process involves applying a known input voltage and then using the device's calibration registers to adjust the gain and offset to achieve the best possible accuracy. Texas Instruments provides a calibration procedure in the device's datasheet and application notes.
  • The maximum sampling rate of the ADS8380IBRHPT is 1 MSPS. The sampling rate affects the device's power consumption, with higher sampling rates resulting in higher power consumption. The device's power consumption can be estimated using the formula provided in the datasheet, which takes into account the sampling rate, supply voltage, and other factors.
  • The ADS8380IBRHPT has built-in overvoltage and undervoltage protection mechanisms. The device can withstand input voltages up to 12V without damage, and it has an internal voltage regulator that can handle input voltages from 2.7V to 5.5V. The device also has an undervoltage lockout (UVLO) circuit that disables the device when the supply voltage falls below a certain threshold.
  • The typical settling time of the ADS8380IBRHPT is 2.5 μs. The settling time affects the device's performance by determining how quickly the device can respond to changes in the input signal. A shorter settling time allows for faster response times and better performance in applications that require high-speed data acquisition.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADS8380IBRHPT Overview

Use the download button to access the ADS8380IBRHPT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS83, or try a keyword search, such as Analog to Digital Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
