ADS8382IRHPT - Texas Instruments

Description: 18-Bit 600KSPS Serial ADC with Ref and Pseudo Bipolar, Fully Differential Input

Download ADS8382IRHPT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

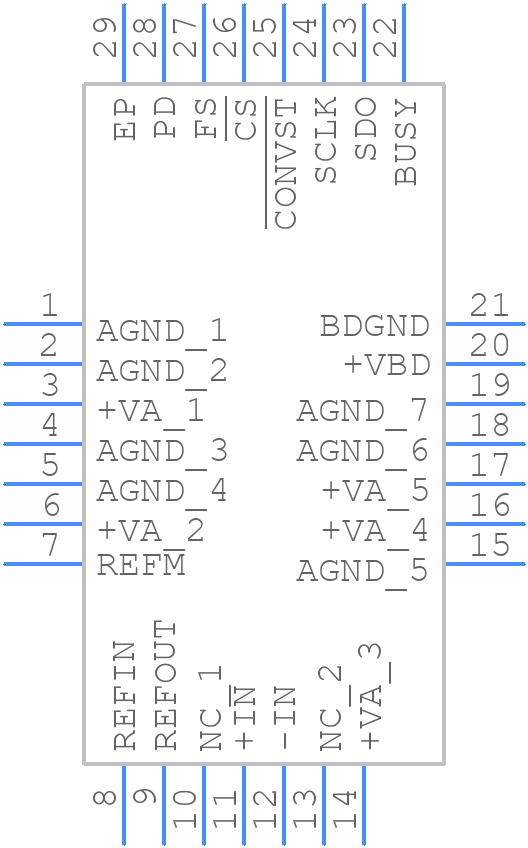

Symbol
ADS8382IRHPT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS8382IRHPT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHP(S-PVQFN-N258)
click to zoom
3D Models
ADS8382IRHPT - Texas Instruments - 3D model - Quad Flat No-Lead - RHP(S-PVQFN-N258)
click to zoom

ADS8382IRHPT Details

  • Manufacturer Part Number:

    ADS8382IRHPT

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    VQFN-28

  • Pin Count:

    28

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    4.2 V

  • Analog Input Voltage-Min:

    -4.2 V

  • Conversion Time-Max:

    1.16 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PQCC-N28

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Linearity Error-Max (EL):

    0.0019%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    1

  • Number of Bits:

    18

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.24SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.6 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    25 mA

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

ADS8382IRHPT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in the ADS8382IRHPT Evaluation Module User's Guide (SLAU445). It's essential to follow this guide to ensure optimal performance and minimize noise.
  • The ADS8382IRHPT has high-speed digital outputs that require careful handling to prevent signal degradation. Use transmission lines, terminate the lines correctly, and consider using a buffer or repeater if the output signals need to travel a long distance.
  • The optimal clock frequency for the ADS8382IRHPT depends on the specific application and sampling rate. However, Texas Instruments recommends a clock frequency between 10 MHz and 40 MHz for most applications. Consult the datasheet and application notes for specific guidance.
  • The ADS8382IRHPT requires calibration for optimal performance. Follow the calibration procedure outlined in the datasheet, which involves adjusting the internal offset and gain to minimize errors. You may also need to perform external calibration depending on your specific application.
  • The power consumption of the ADS8382IRHPT depends on the operating frequency, sampling rate, and other factors. To reduce power consumption, consider using the device's power-down mode, reducing the clock frequency, or optimizing the analog input range. Consult the datasheet for specific power consumption values and guidance.
