ADS8401IBPFBT - Texas Instruments

Description: Analog to Digital Converters - ADC 16 Bit 1.25MSPS Parallel W Ref

Download ADS8401IBPFBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

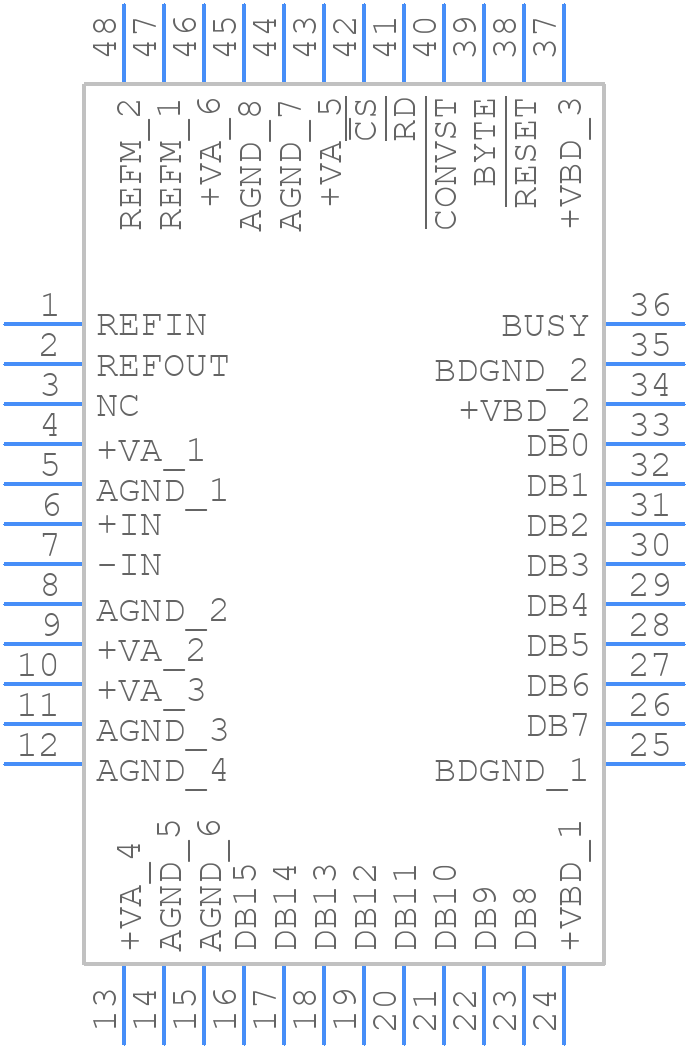

Symbol
ADS8401IBPFBT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS8401IBPFBT - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PFB (S-PQFP-G48
click to zoom
3D Models
ADS8401IBPFBT - Texas Instruments - 3D model - Quad Flat Packages - PFB (S-PQFP-G48
click to zoom

ADS8401IBPFBT Details

  • Manufacturer Part Number:

    ADS8401IBPFBT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Package Description:

    GREEN, PLASTIC, TQFP-48

  • Pin Count:

    48

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    4.2 V

  • Conversion Time-Max:

    0.61 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.0053%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, 8 BITS, PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Equivalence Code:

    TQFP48,.35SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1.25 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

ADS8401IBPFBT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a layout guide in the datasheet, but for optimal performance, it's recommended to follow a star-grounding scheme, keep analog and digital grounds separate, and use a solid ground plane. Additionally, keep the analog input traces short and away from digital signals.
  • To prevent EMI, use a low-inductance path for the digital outputs, keep the output traces short, and use a termination resistor (e.g., 50 ohms) at the receiving end. You can also use EMI-absorbing materials or shielding to reduce radiation.
  • The maximum clock frequency for the ADS8401IBPFBT is 20 MHz, but it's recommended to use a clock frequency of 10 MHz or less to ensure reliable operation and minimize jitter.
  • Calibration involves adjusting the offset and gain of the ADC. You can use the internal calibration feature of the ADS8401IBPFBT or use an external calibration signal. Refer to the datasheet for the calibration procedure and equations.
  • The POR timing for the ADS8401IBPFBT is typically around 10 ms, but it can vary depending on the power supply ramp-up time and other factors. Ensure that the power supply is stable before accessing the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADS8401IBPFBT Overview

Use the download button to access the ADS8401IBPFBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS84, or try a keyword search, such as Analog to Digital Converters
