For optimal performance, it's recommended to keep the analog and digital grounds separate, use a quiet analog power supply, and keep the input signals away from the digital signals. Additionally, place the device close to the analog-to-digital conversion point and use a low-impedance power supply. TI provides a layout guide in the datasheet and application notes that can help with optimal placement and routing.
The ADS8405IBPFBTG4 has a maximum junction temperature of 150°C. To manage thermal issues, ensure good airflow around the device, use a heat sink if necessary, and keep the device away from heat sources. TI recommends using a thermal pad or thermal interface material to improve heat transfer between the device and the PCB.
To prevent aliasing, it's essential to filter the input signals to the ADS8405IBPFBTG4. TI recommends using a low-pass filter with a cutoff frequency at least 20 times lower than the sampling frequency. A third-order Bessel filter or a fifth-order elliptical filter can be used to achieve this. The filter design should be tailored to the specific application requirements.
The ADS8405IBPFBTG4 has an internal calibration circuit that can be enabled through the CAL_EN pin. However, for optimal performance, it's recommended to perform an external calibration using a known reference voltage. TI provides an application note that outlines the calibration procedure. Additionally, the device should be calibrated at the operating temperature and voltage to ensure accurate results.
A low-jitter clock source is essential for optimal performance. TI recommends using a dedicated clock source, such as a crystal oscillator or a high-quality clock generator. The clock frequency should be at least 10 times higher than the sampling frequency. To minimize clock jitter, use a clock source with a low phase noise and a high-quality PCB layout that separates the clock signals from the analog and digital signals.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8405IBPFBTG4 Overview

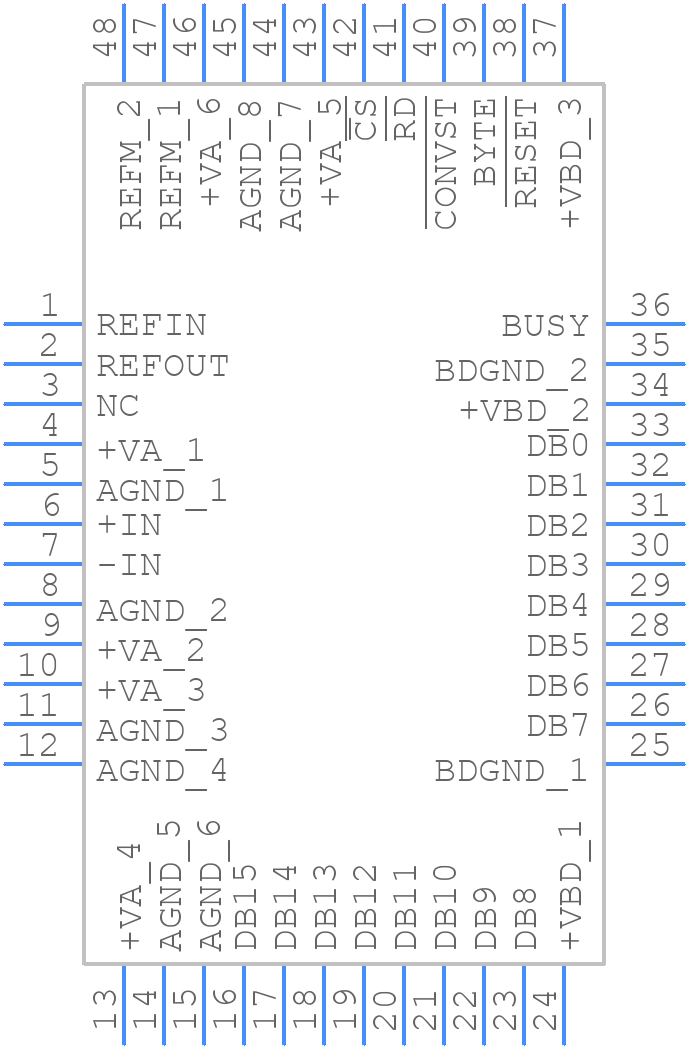

Use the download button to access the ADS8405IBPFBTG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS84,
or try a keyword search, such as Analog to Digital Converters
