ADS8406IBPFBT - Texas Instruments

Description: 16-Bit 1.25 MSPS, Pseudo Bipolar, Fully Differential Input Micro Power Sampling ADC

Download ADS8406IBPFBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

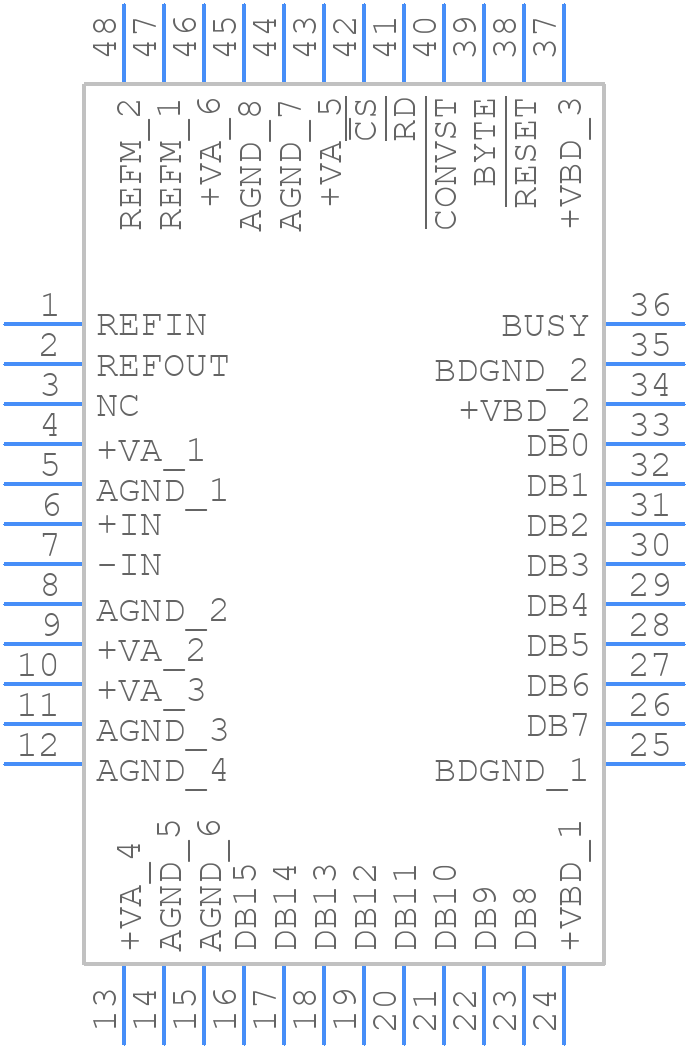

Symbol
ADS8406IBPFBT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS8406IBPFBT - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PFB (S-PQFP-G48
click to zoom
3D Models
ADS8406IBPFBT - Texas Instruments - 3D model - Quad Flat Packages - PFB (S-PQFP-G48
click to zoom

ADS8406IBPFBT Details

  • Manufacturer Part Number:

    ADS8406IBPFBT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    TFQFP-48

  • Pin Count:

    48

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    4.2 V

  • Analog Input Voltage-Min:

    4.2 V

  • Conversion Time-Max:

    650 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.0061%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, 8 BITS, PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Equivalence Code:

    TQFP48,.35SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1.25 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    34 mA

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

ADS8406IBPFBT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in the ADS8406IBPFBT evaluation module documentation, which includes guidelines for PCB layout, component placement, and routing to minimize noise and ensure optimal performance.
  • The ADS8406IBPFBT does not require calibration, as it is a self-calibrating ADC. However, it's recommended to follow the recommended layout and routing guidelines and ensure proper power supply decoupling to minimize noise and ensure accurate results.
  • The ADS8406IBPFBT can achieve a maximum sampling rate of 500 kSPS, but this may vary depending on the specific application and system design. It's recommended to consult the datasheet and application notes for more information on achieving optimal sampling rates.
  • The ADS8406IBPFBT is specified to operate from -40°C to 125°C, but it's recommended to consult the datasheet and application notes for more information on operating the device in high-temperature applications. Additionally, it's recommended to consider the device's thermal characteristics and ensure proper thermal management in the system design.
  • The ADS8406IBPFBT has a parallel interface that can be easily interfaced with a microcontroller or FPGA. Texas Instruments provides application notes and example code for popular microcontrollers and FPGAs, which can be used as a reference for designing the interface.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADS8406IBPFBT Overview

Use the download button to access the ADS8406IBPFBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS84, or try a keyword search, such as Analog to Digital Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
