Texas Instruments provides a layout guide and PCB design checklist in the ADS8410IRGZT datasheet and application notes. It's essential to follow these guidelines to minimize noise, ensure signal integrity, and achieve optimal performance. Key considerations include keeping analog and digital signals separate, using a solid ground plane, and minimizing trace lengths and vias.
The gain and offset settings for the ADS8410IRGZT depend on the specific application requirements. Engineers should consider factors such as the input signal range, desired output range, and noise tolerance. Texas Instruments provides a gain and offset calculation tool and application notes to help with this process. Additionally, engineers can consult with TI's support team or use online forums for guidance.
Clock jitter can affect the ADS8410IRGZT's performance by introducing noise and distortion into the conversion process. To minimize clock jitter, engineers should use a high-quality clock source, such as a crystal oscillator or a low-jitter clock generator. Additionally, they should ensure that the clock signal is properly terminated and routed to minimize noise coupling. TI's application notes provide more information on clock jitter and its mitigation.
The ADS8410IRGZT requires calibration to achieve optimal performance. Engineers should follow the calibration procedure outlined in the datasheet and application notes, which involves adjusting the gain and offset settings to match the specific application requirements. Additionally, TI provides calibration software and tools to simplify the process.
The ADS8410IRGZT is a high-performance ADC that can generate heat during operation. Engineers should ensure that the device is properly heat-sinked and that the PCB design allows for adequate airflow. TI provides thermal design guidelines and thermal models to help engineers estimate the device's junction temperature and ensure reliable operation over temperature.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8410IRGZT Overview

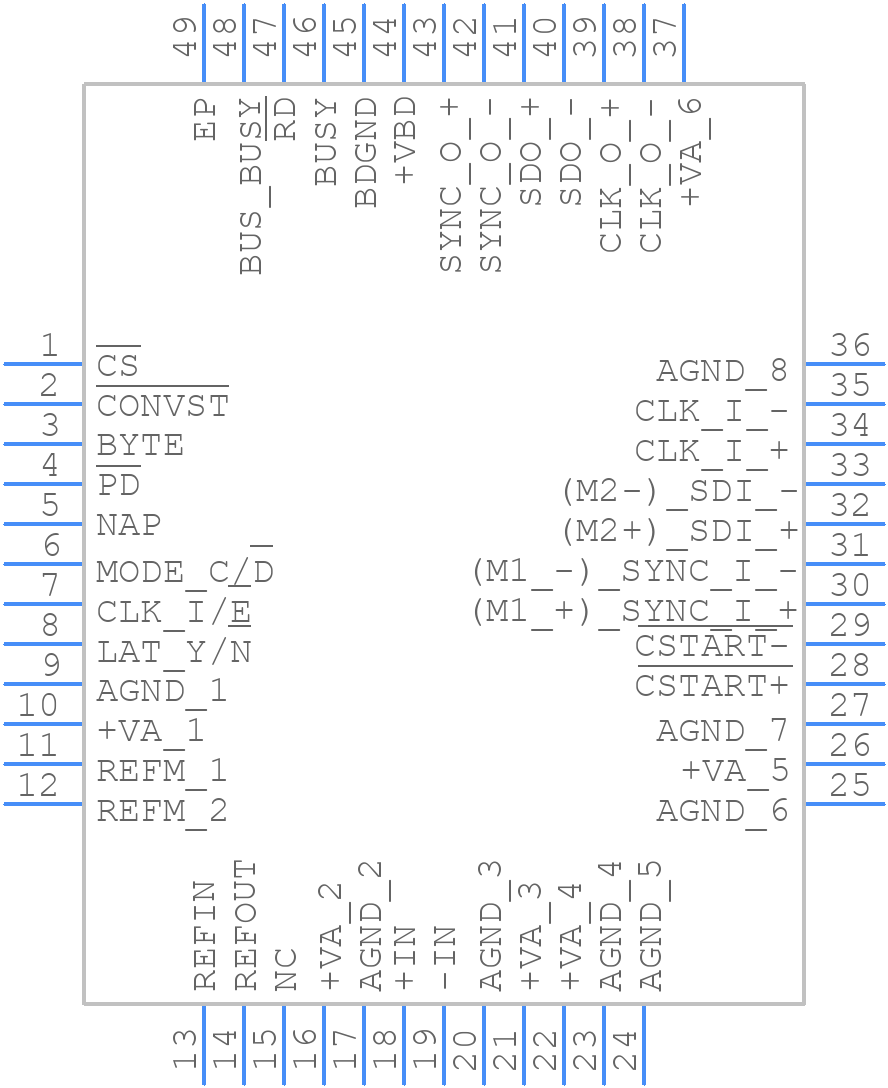

Use the download button to access the ADS8410IRGZT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS84,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
