Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep analog and digital signals separate. Use short, direct traces for analog signals, and avoid crossing digital signals over analog signals. Also, use a common mode filter or a ferrite bead to filter out high-frequency noise.
To optimize performance in a multi-ADC system, ensure that each ADC has its own analog supply voltage and reference voltage. Use a separate analog ground plane for each ADC, and isolate the analog and digital grounds. Also, consider using a star-ground topology to minimize noise coupling between ADCs.
The ADS8412IBPFBT has an internal calibration circuit that can be used to calibrate the ADC. Apply a known input voltage to the ADC, and then use the calibration circuit to adjust the ADC's offset and gain to match the expected output code. Repeat this process for multiple input voltages to ensure accurate conversions across the entire input range.
Metastability can occur in the ADS8412IBPFBT when the input signal is near the threshold voltage. To handle metastability, use a Schmitt trigger or a hysteresis circuit to condition the input signal. Also, consider using a synchronizer or a metastability resolver to ensure that the ADC output is stable and accurate. Metastability can cause errors in the ADC output, leading to inaccurate conversions and system errors.
The ADS8412IBPFBT has a maximum junction temperature of 150°C. Ensure good thermal conductivity between the ADC and the PCB, and use thermal vias to dissipate heat. In high-temperature environments, consider using a heat sink or a thermal interface material to reduce the junction temperature. Also, ensure that the ADC is operated within its specified temperature range to ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8412IBPFBT Overview

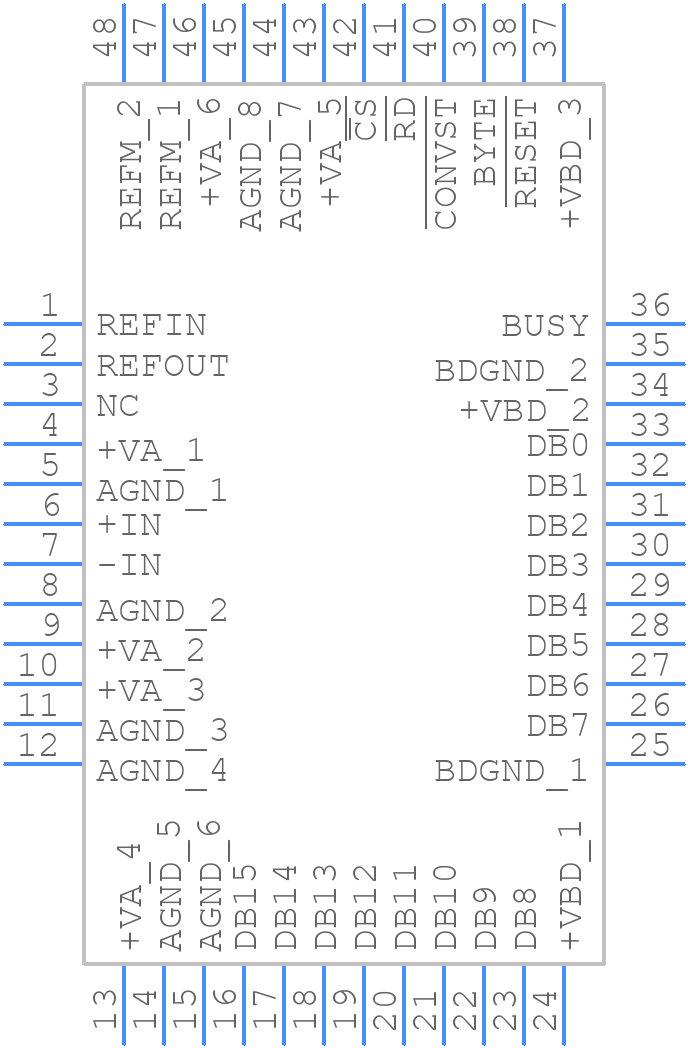

Use the download button to access the ADS8412IBPFBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS84,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
