Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep analog and digital signals separate. Use short, direct traces for analog signals, and avoid crossing digital signals over analog signals. Also, decouple the power supply with 0.1uF and 10uF capacitors.
Optimize the ADC's performance by selecting the correct clock frequency, setting the correct gain and offset, and using the correct input range. Also, consider using the ADC's built-in calibration features and adjusting the sampling rate to match your application's requirements.
Power up the device in the following sequence: AVDD, DVDD, and then CLKIN. Ensure that the power supplies are stable and within the recommended voltage range before applying the clock signal.
Use a FIFO or a buffer to handle the ADC's output data, and ensure that the data is read at a rate that matches the ADC's sampling rate. Also, consider using the ADC's built-in error detection and correction features to ensure accurate conversions.
The ADS8471IBRGZT has a maximum junction temperature of 150°C. Ensure reliable operation over temperature by providing adequate heat sinking, using a thermal interface material, and following the recommended PCB layout and routing guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8471IBRGZT Overview

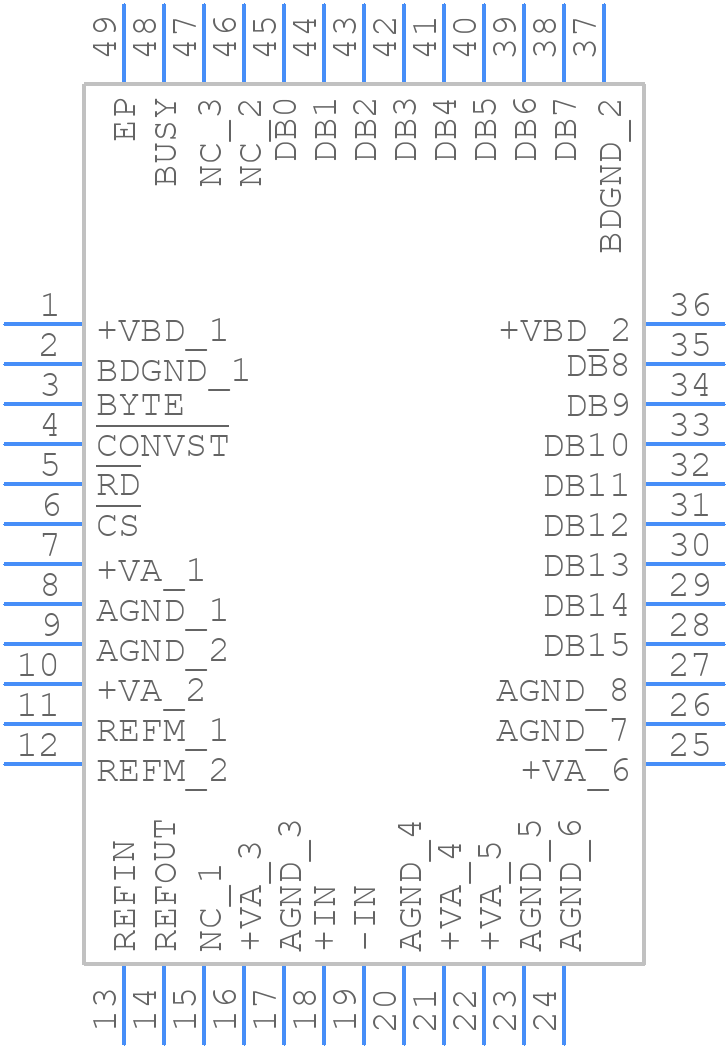

Use the download button to access the ADS8471IBRGZT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS84,
or try a keyword search, such as Analog to Digital Converters
