Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep analog and digital signals separate. Use short, direct traces for analog signals, and avoid crossing digital signals over analog signals. Also, decouple the power supply with 0.1uF and 10uF capacitors.
Optimize the ADC's performance by selecting the correct clock frequency, setting the correct gain and offset, and using the correct input range. Also, consider using the ADC's built-in calibration features and adjusting the sampling rate to match your application's requirements.
The recommended power-up sequence is to apply the analog power supply (AVDD) first, followed by the digital power supply (DVDD), and then the clock signal. This ensures that the ADC's internal biasing and references are properly established before the clock is applied.
The ADS8472IBRGZT outputs 16-bit data in a serial format. You'll need to use a microcontroller or FPGA to receive and process the data. Consider using a SPI or parallel interface to connect the ADC to your system, and use a FIFO or buffer to handle the data stream.
The ADS8472IBRGZT has a maximum junction temperature of 150°C. Ensure good airflow around the device, and consider using a heat sink or thermal pad to dissipate heat. Also, avoid exposing the device to extreme temperatures during storage or handling.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS8472IBRGZT Overview

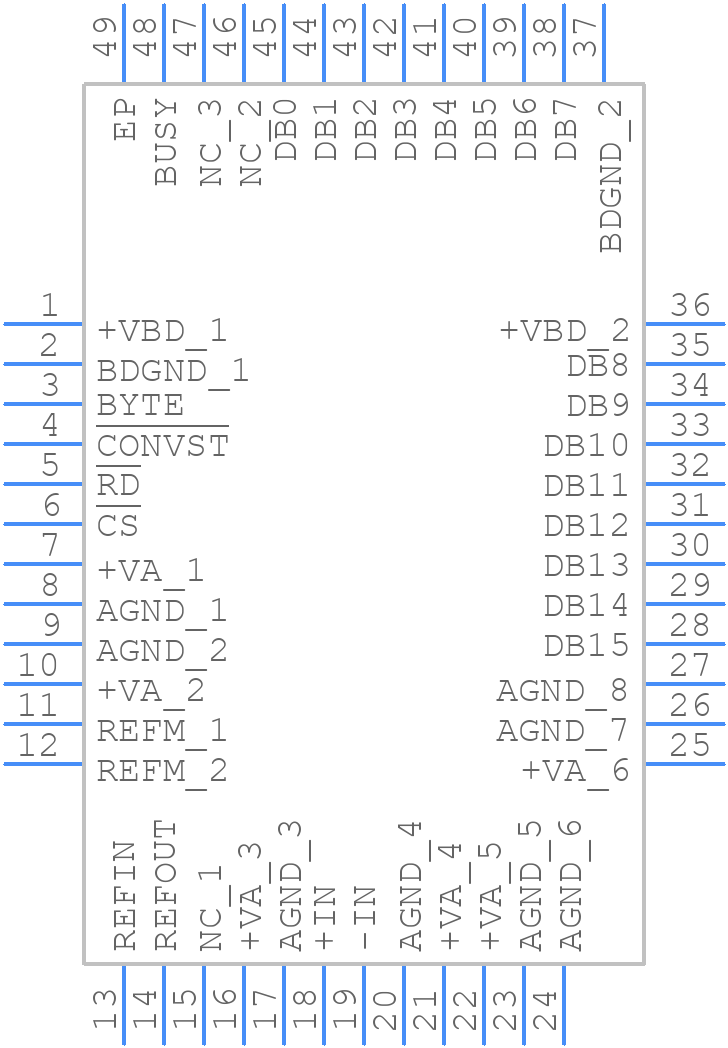

Use the download button to access the ADS8472IBRGZT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS84,
or try a keyword search, such as Analog to Digital Converters
